VLNK-SVR

VLNK-SVR Mechanical Sealing FTTH Drop Cable Access Closure



Description:

The FTTH Drop Cable Access Closure is a crucial component in fiber optic networks, particularly in FTTH (Fiber to the Home) installations. This closure plays a vital role in protecting and organizing fiber optic splices, ensuring the integrity and reliability of the network connections. In brief, FTTH Closure is used to protect fiber splicing, store slack cables, distribute cables, etc. FOSC can be installed in aerial, pole, wall, duct mounting, and directly buried.

VLNK-SVR is developed based on the good feedback of VLNK. In order to have better Cost Performance, we decrease some unnecessary Components in VLNK and improve some Components Like Outlet ports. In this case, VLNK-SVR will be much easier to operate than VLNK with Higher Performance.



Features:

  • Dis-mountable adaptor panel
  • Support mid-span termination
  • Easy operation and installation
  • Rotatable and dis-mountable splice tray for easy splicing
  • IP65 sealing
  • Supporting Micro PLC Splitter

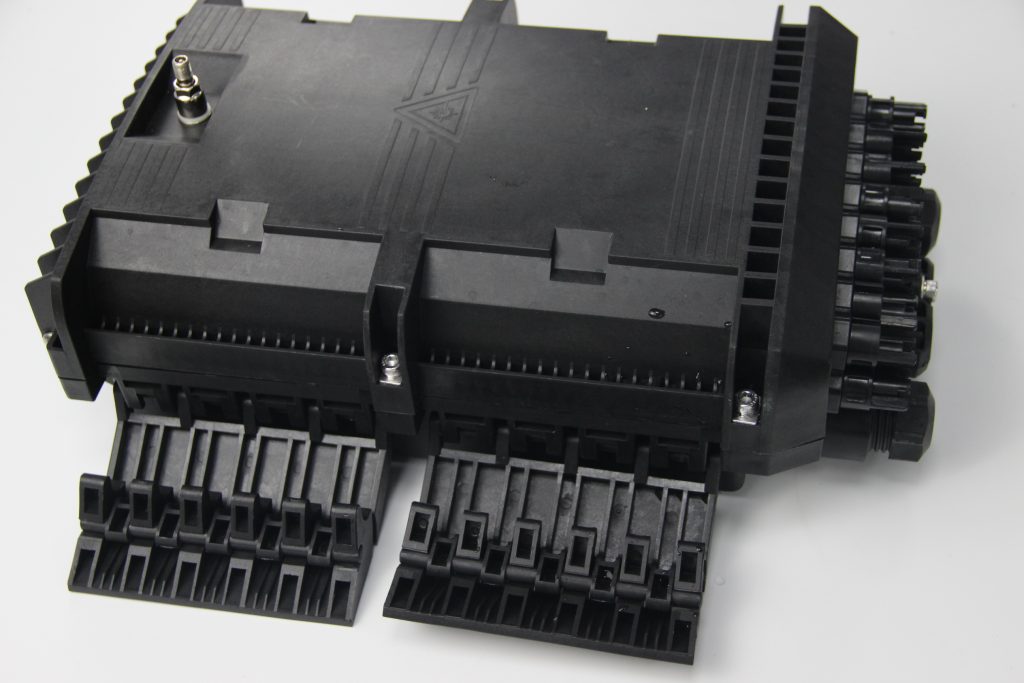

Ports Redesign

Considering the sophisticated fielding working situation, We redesigned the ports of VLNK to make it easier for Outlet Cable.

With this small improvement, customers will save a lot of time inputting outlet cables.[/vc_column_text][/vc_column]

Ports
Ports in Details-1



Applications:

  • Wall mounting & pole mounting installation
  • Suitable for 2*3mm Indoor FTTH Drop Cable and Outdoor Figure 8 FTTH Drop Cable
  • Diameter 3-7mm Round Drop Cable
ModelVLNK-SVR-16-4VLNK-SVR-24-2VLNK-SVR-12P
Adapter16pcs of SC24pcs of SC12pcs of SC
Splitter
(Micro Type )
1pc of 1*16 or
2pcs of 1*8
1pc of 1*16 or
2pcs of 1*8
1pc of 1*8
Capacity48 (12 fibers/tray)48 (12 fibers/tray)48 (12 fibers/tray)
Input Ports1 oval uncut port and 2 round ports1 oval uncut port1 oval uncut port
Output Ports16 Ports24 ports24 ports
Input Cable SizeΦ8~Φ17.5mmΦ8~Φ17.5mmΦ8~Φ17.5mm
Out Cable SizeDrop Cable: 2*3mm, 2*5mm

Round Cable:
Φ3mm to Φ7mm

Drop Cable: 2*3mm, 2*5mm

Round Cable:
Φ3mm to Φ7mm

Drop Cable: 2*3mm, 2*5mm

Round Cable:
Φ3mm to Φ7mm

Pictures
Dimension388*242*130mm
Packing540*410*375mm (4pcs per carton)



Ordering Information:VLNK-Model-Adapter-Splitter-Installation-Diameter
ModelAdapterMico SplitterInstallationOutPut Diameter
VLNK-SVR-16-4
VLNK-SVR-24-2
VLNK-SVR-12P
SU: SC/UPC
SA: SC/APC
FU: FC/UPC
FA: FC/APC
116: 1 pc of 1*16
118: 1 pc of 1*8
218: 2 pcs of 1*8
W: Wall Mounting
P: Pole Mounting
23:
2*3mm Drop Cable
25:
2*5mm Drop Cable
3:
3mm Round Cable
4:
4mm Round Cable
….
