Description:

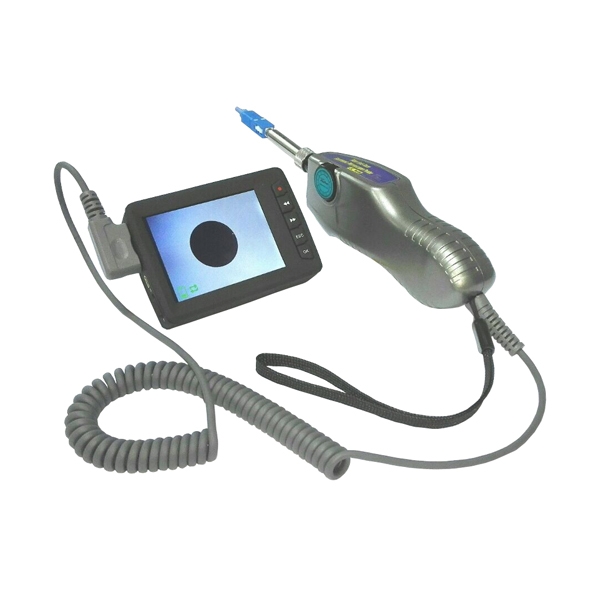

Fiber Inspector is able to inspect both male and female fiber optic connectors of SC/LC/FC/MU/E2000/MPO’s end face with 400X magnification, displaying fiber end face through a video screen. Fiber Inspector can verify whether the connector end face is contaminated, scratched, damaged, clean or not.
It is easy to inspect fiber optic connectors in hard-to-reach areas, connectors inside fiber optic patch panel for example.
Features:
Fiber Optic Inspection Probe:
- Consistent alignment, simple to operate
- Unidirectional focusing, quick and accurate imaging
- 400X magnification, clear image
Display:
- Small, light, and portable
- Changeable high capacity batteries
- Photo, video, and record tested fiber
- Brightness and Contrast adjustable
Specification:
| Fiber Optic Inspection Probe: | |
| Magnification | 400X |
| Resolution | <1μm |
| View of Field | X: 0.3165 Y: 0.285 |
| Focus Direction | unidirectional |
| Focus Speed | 2~6S |
| Alignment | >98% |
| Output Port | Dual pins AV port |
| Weight | 110g |
| Dimension | 180L*22W*56H (mm) |
| Display: | |
| Screen Dimension | 2.7 inch / 960*240 |
| Enlarged Size | 22mm |
| Picture | Single-framed 640x480JPG |
| Timer | 5/15/30mins selections |
| Batteries | Li-ion1800mAh |
| Languages | English/Chinese/Russian |
| TF Storage | Support 32G |
| Input/Output Port | AV /USB2.0 |
| Weight | 85g |
| Dimension | 78L*22W*56H (mm) |
| Standard Accessories: | |
| Name | Quantity |
| Fiber Optic Inspection Probe | 1pc |
| 2.7 inch display | 1pc |
| SC-PC-F (For SC/PC adaptor) | 1pc |
| FC-PC-F (For FC/PC adaptor) | 1pc |
| LC-PC-F (For LC/PC adaptor) | 1pc |
| 2.5PC-M (For 2.5mm connectors, SC/PC, FC/PC, ST/PC) | 1pc |
| Li-ion batteries | 2pcs |
| Charger | 1pc |
| USB cable | 1pc |
| Earphone cable | 1pc |
| 8G TF Reader | 1pc |
| Soft case | 1pc |
| Optional Accessories: | |
| Name | Quantity |
| ST-PC-F (For ST/PC adaptor) | 1pc |
| MU-PC-F (For MU/PC adaptor) | 1pc |
| E2000-F-PC (For E2000/PC adaptor) | 1pc |
| MTRJ-PC-F (For MTRJ/PC adaptor) | 1pc |
| 1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC) | 1pc |
| SMA-M (For SMA/PC connector) | 1pc |
| FC-F-APC (For FC/APC adaptor) | 1pc |
| SC-F-APC (For SC/APC adaptor) | 1pc |
| LC-APC-F ((For LC/APC adaptor) | 1pc |
| E2000-APC-F ((For E2000/APC adaptor) | 1pc |
| 2.5M-APC (For 2.5mm connectors, SC/APC, FC/APC, ST/APC) | 1pc |
| MPO-PC-F (For MPO/PC adaptor); MPO-APC-F (For MPO/APC adaptor) | 1set |
| Tip60 (60 degree base for special tips) | 1pc |
| FC-PC-60F (For FC/PC adaptor at 60 degree testing) | 1pc |
| SC-PC-60F (For SC/PC adaptor at 60 degree testing) | 1pc |
| LC-PC-60F (For LC/PC adaptor at 60 degree testing) | 1pc |
| LC-APC-60F (For LC/APC adaptor at 60 degree testing) | 1pc |
| SC-APC-60F (For SC/APC adaptor at 60 degree testing) | 1pc |
| 1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC at 60 degree testing) | 1pc |
