Description:

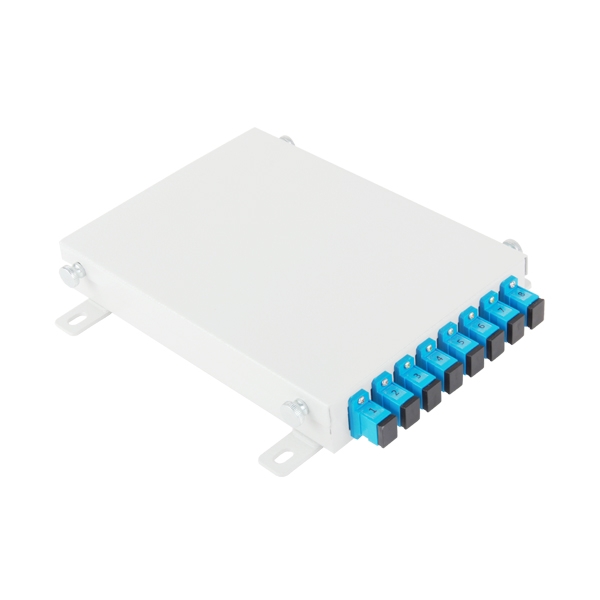

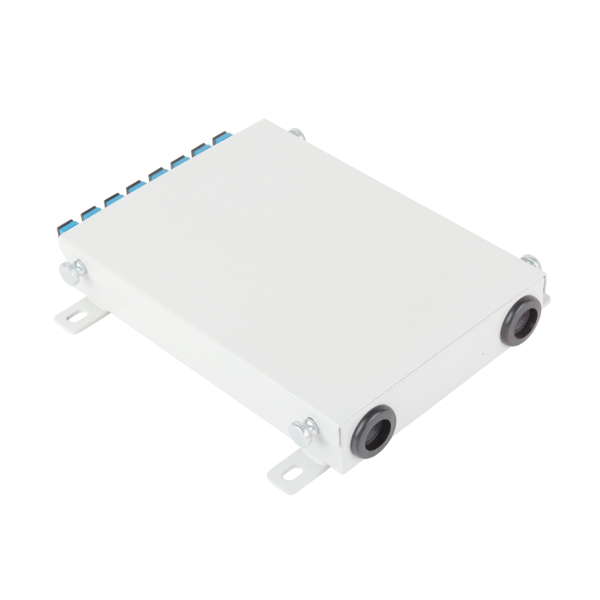

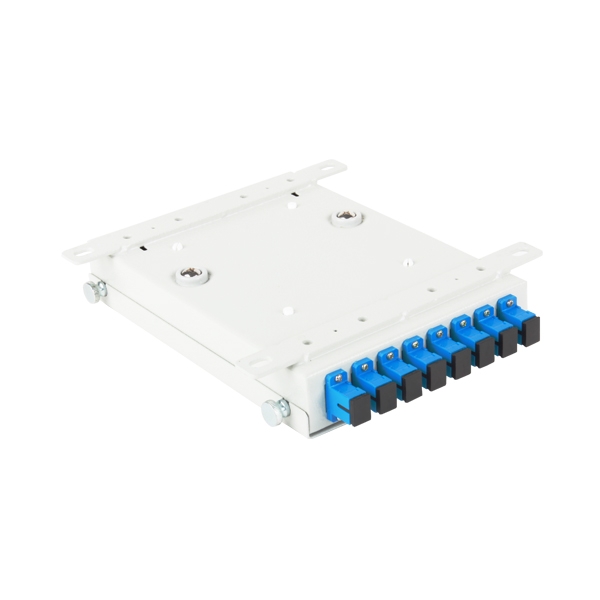

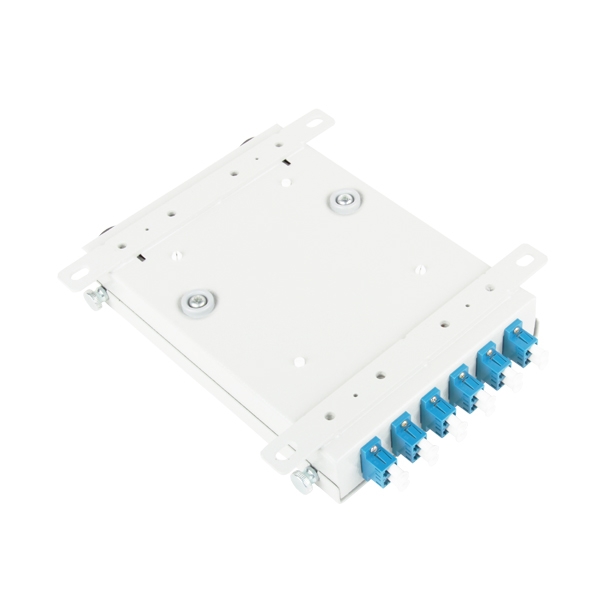

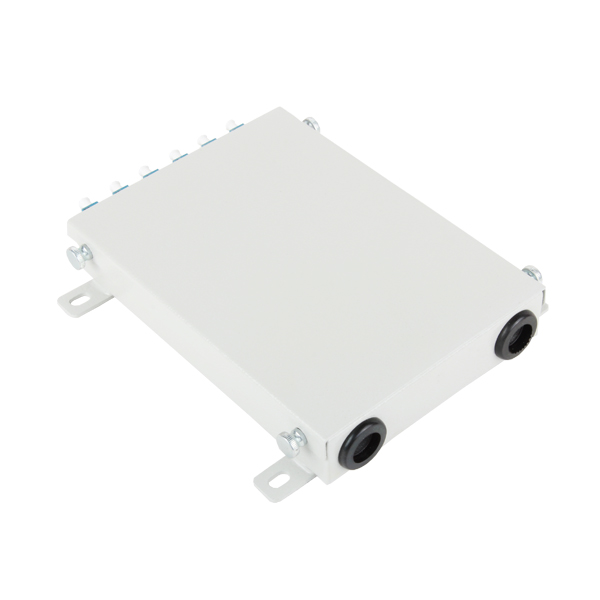

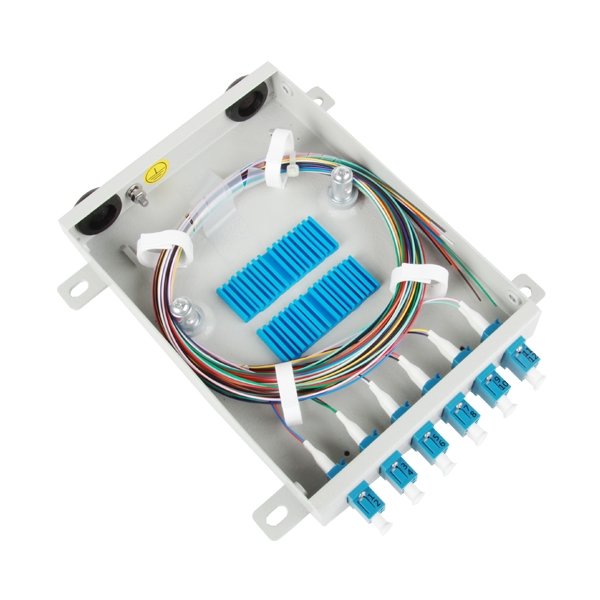

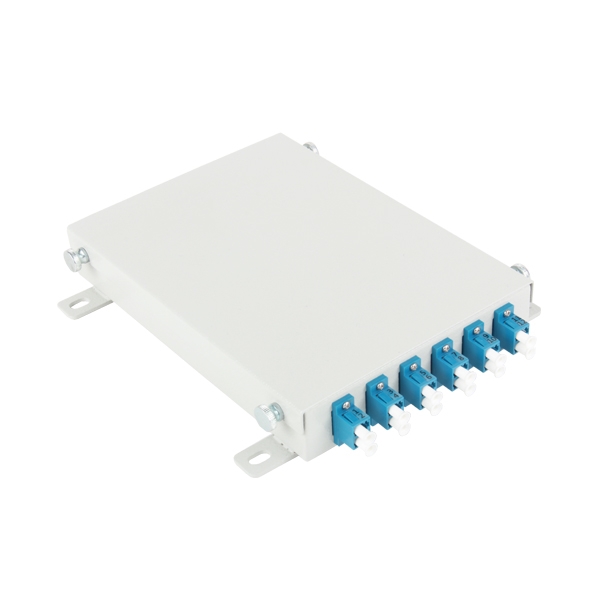

Indoor Wall Mount Optical Termination Box OTB is used as a terminal box for fiber optic cable termination and distribution at customer premises in fiber optic system. Wall Mount Optical Termination Box is for optical fiber fixation, fusion and patching on wall for indoor application.



Features:

  • Cable clamping by cable tie and strength member fixation system
  • Clear fiber number marking on adapter panel
  • Suitable for outdoor cable and FTTH Drop Cable



Specifications:

Applicable AdapterSC, FC or duplex LC
Capacity8/12/16 fibers
Materialcold rolled steel
Colorgrey
Installation Methodwall mounting
Cable Ports2 ports
Dimension180(H)*130(W)*35D)mm

Ordering Information: LW-OTB-10-XX-XX-XX:

ModelLW-OTB-10
XX: AdapterNone: without adapter

SC: SC/UPC

SA: SC/APC

FC: FC/UPC

FA: FC/APC

LC: LC/UPC

LA: LC/APC

XX: PigtailNone: without adapter

SC: SC/UPC

SA: SC/APC

FC: FC/UPC

FA: FC/APC

LC: LC/UPC

LA: LC/APC

XX: Fiber Capacity8: 8 fibers

12: 12 fibers

16: 16 fibers
