LW-FOSC-IM288F-6 Inline Type 6 Port Mechanical Sealing
Fiber Optic Splice Closure (FOSC)
Description:
The Fiber Optic Splice Closure is continuously improved and perfected according to the requirements of users, which provides quality assurance for excellent voice, image, and data transmission. It can fully meet the requirements of overhead optical cable, underground direct burial, wall hanging at the entrance of the building, and wall hanging construction in pipeline manholes. This splice box can be used for large-capacity branch connection of optical cable straight-through splice box and plays the role of protecting optical cable joints.
 |  |
 |
48 cores/tray, 24 Slots/tray, 2cores/Slot (Maximum) |
Features:
- Easy to operate
- Reliable sealing performance
- Easy to open repeatedly
- High strength, can be directly buried or installed overhead
- Reliable grounding protection
- Protect the fiber in the whole process, and ensure its bending radius ≥ 40mm
- Easy and fast operation and maintenance
Specification:
| Model | LW-FOSC-IM288F-6 |
| Type | Inline type |
| Number of Inlet/Outlet ports | 6 ports |
| Cable Diameter | 6 ports×7-23mm |
| Maximum Capacity | Bunchy: 144/288 fibers; |
| Capacity per Splice Tray | Bunchy: single layer: 24 fibers; dual layers: 48 fibers; Ribbon: 6 pcs |
| Quantity of Splice Tray | 6pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 350(L)×216(W)×140(H)mm |
| Net Weight | 1.5~2.0KG |
| Temperature | -40℃~65℃ |

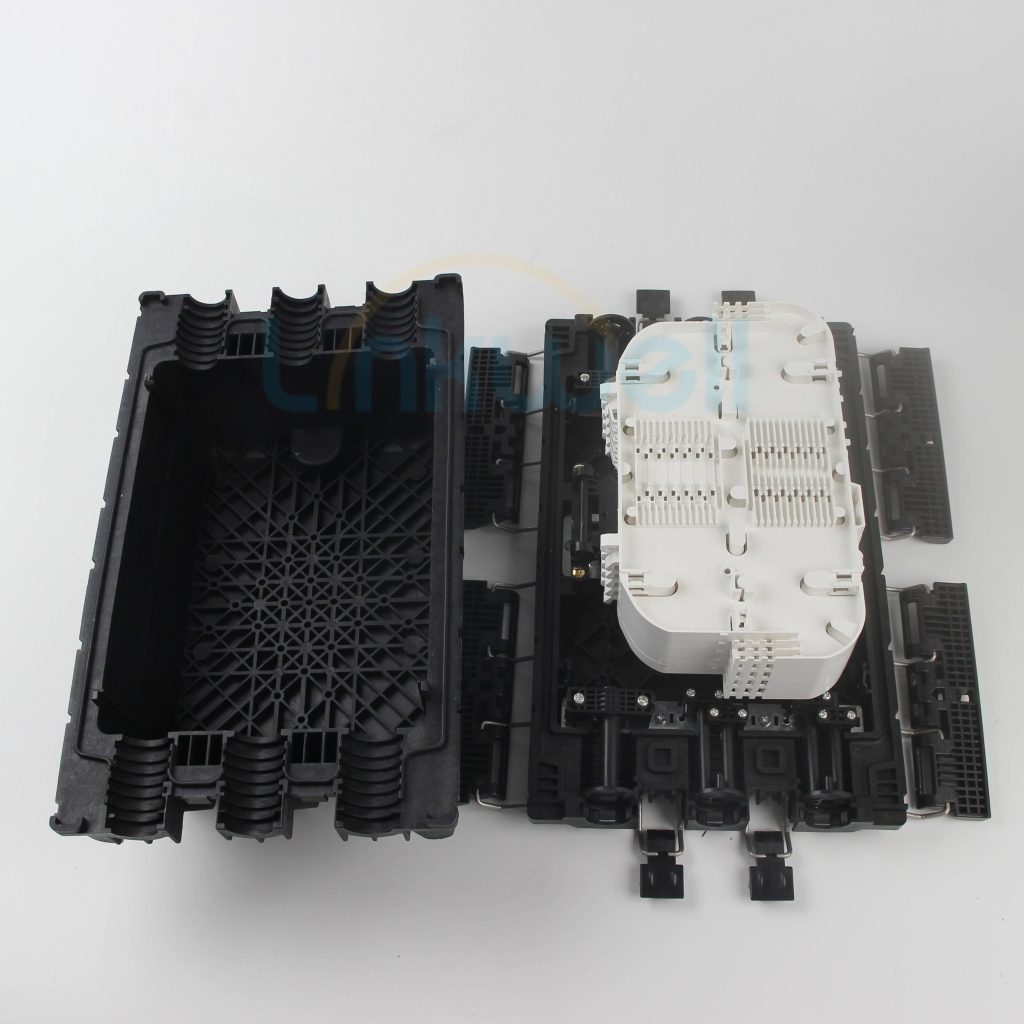

Main Components:
| Item | Name | Usage | Quantity |
| 1 | Housing (Bottom) | To protect splices of fiber optic cables | 1pc |
| 2 | Housing (Cover) | To protect splices of fiber optic cables | 1pc |
| 3 | Splice Tray | To fix Fiber Splice Protective Sleeves | Max. 6pcs |
| 4 | Foundation | To fix fiber cable, strength members, and splice trays | 1pc |
| 5 | Sealing Grommet | To seal the bottom and cover | 1 set |
| 6 | Plug | To seal empty ports | 6pcs |
| 7 | Bolt | To fix the bottom and cover | 1 set |
Standard Accessories:
| Item | Name | Usage | Quantity |
| 8 | Fiber Splice Protective Sleeves | To protect fiber splices | Same as capacity |
| 9 | Nylon Tie | To fix buffer tubes with fibers inside | 8pcs |
| 10 | Insulation Tape | To enlarge cable diameter for fixation | 1 roll |
| 11 | Sealing Tape | To enlarge cable diameter for sealing grommet | 1 roll |
| 12 | Hanging Hook | For aerial installation | 2pcs |
| 13 | Grounding Wire | To connect with a grounding device | 1pc |
| 14 | Abrasive Cloth | To polish fiber optic cable | 1pc |
| 15 | Labelling Paper | To label fibers | 1 set |
| 16 | M6 Wrench | To screw bolts of housing | 1pc |
| 17 | User Manual | To instruct installation | 1pc |
Optional Accessories:
| Item | Name | Usage | Quantity |
| 1 | Valve | To perform pressure and sealing testing | 1pc |
| 2 | Grounding Device | To derive metallic components of fiber cable | 1 set |
| 3 | Buffer Tube | To protect fibers and be fixed on splice trays | specified |
| 4 | Desiccant | To desiccate air in FOSC after sealing | 1 bag |
Ordering Information:
| Brand | LW |
| Name | FOSC: Fiber Optic Splice Closure |
| Shape and Sealing | IM-288F: Inline type mechanical sealing 288Cores |
| Cable Port | 6=6 Ports |
| Fiber Optic Splice Tray | 24: 24-core 48: 48-core |
| Number of Splice Trays | 1: 1 tray 2: 2 trays .. 6: 6 trays |
| Valve | V: Valve included |
| Grounding Device | G: Grounding device included |
For example LW-FOSC-IM288F-6-246-VG
