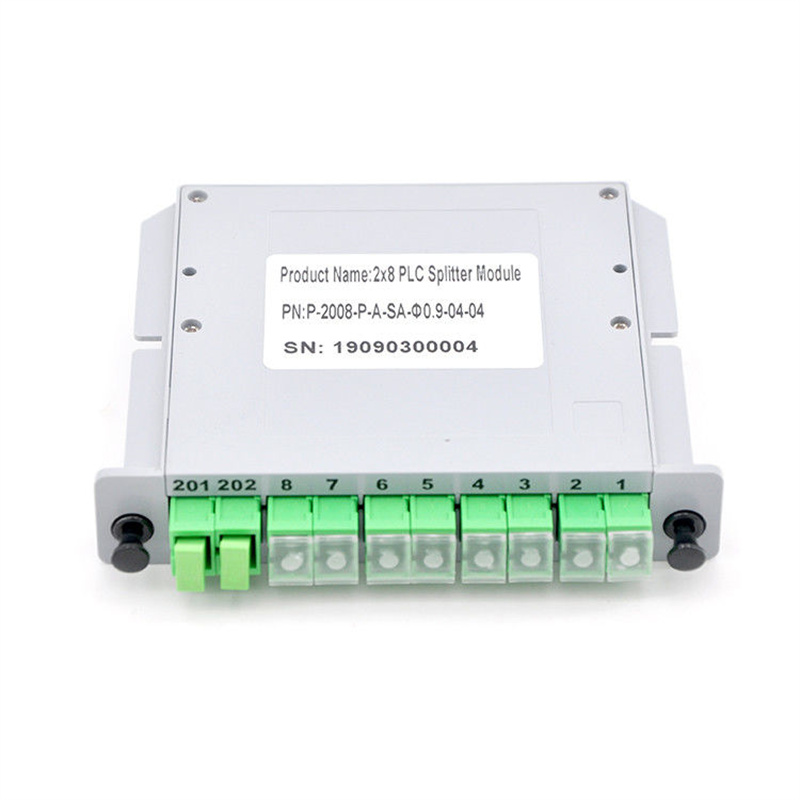

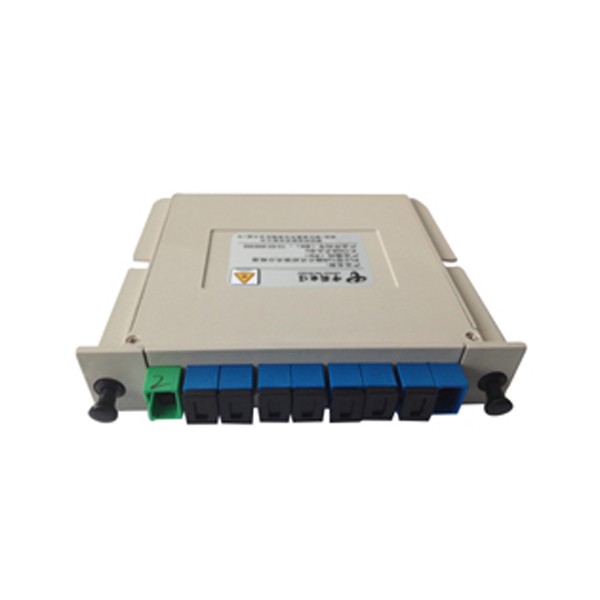

Insertion Module PLC Splitter



Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network.

The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from the central office to customer premises in FTTx and FTTH networks.

PLC Splitter offers a cost-effective and space-saving networking solution in an optical transmission system.

Insertion Module PLC Splitter is packaged in a standard-size module, and installed in Optical Splitter Box or Fiber Distribution Hub. Insertion Module PLC Splitters are widely used for FTTH Passive Optical Network as passive optical splitters, including EPON (as EPON Splitter) and GPON (as GPON Splitter).

An Insertion Module PLC splitter is a compact optical device that integrates a splitter chip into a module without the need for additional housing. It is designed to split an incoming optical signal into multiple output signals with equal power levels. The splitter chip is based on a planar lightwave circuit, which allows for efficient signal splitting and distribution.



Features:

  • Uniform power splitting
  • Compact package dimension
  • Low polarization-dependent loss
  • Good channel-to-channel uniformity
  • Low Insertion Loss and High Return Loss
  • Environmentally and mechanically stable
  • Wide operating wavelength range from 1260nm to 1650nm



Applications:

  • Telecommunication networks
  • PON (Passive Optical Network)
  • FTTX, FTTH (Fiber to the Home)



Standards:

  • Telcordia GR-1209 and GR-1221



Specifications:

Table 1: Performance for 1×N PLC Splitter

Note: All measurements are done at room temperature without connectors.

Port Configuration1×21×41×81×161×321×64
Operating Wavelength (nm)1260~1650
Insertion Loss (dB)Typ.3.66.810.013.016.019.5
Max.4.07.310.513.716.921.0
Loss Uniformity (dB)Typ.0.40.50.51.01.01.5
Max.0.60.60.81.21.52.5
Return Loss (dB)555555555555
PDL (dB)Typ.0.10.10.10.10.20.2
Max.0.20.20.30.30.30.4
Directivity (dB)555555555555
Fiber Length (m)1.0 or customized
Fiber TypeCorning SMF-28e or customized
Wavelength Dependent Loss (dB)Typ.0.20.20.20.30.30.3
Max.0.30.30.30.50.50.5
Temperature Stability (-40~+85°C) (dB)Typ.0.30.30.30.40.40.4
Max.0.50.50.50.50.50.5
Operating Temperature (°C)-40~+85°C
Storage Temperature (°C)-40~+85°C



Table 2: Performance for 1×N PLC Splitter

Note: All measurements are done at room temperature with connectors.

Port Configuration1×21×41×81×161×321×64
Operating Wavelength (nm)1260~1650
Insertion Loss (dB)Typ.4.07.010.313.516.520.0
Max.4.57.711.014.217.521.5
Loss Uniformity (dB)Typ.0.40.50.51.01.01.5
Max.0.60.60.81.21.52.5
Return Loss (dB)555555555555
PDL (dB)Typ.0.10.10.10.10.20.2
Max.0.20.20.30.30.30.4
Directivity (dB)555555555555
Fiber Length (m)1.0 or customized
Fiber TypeCorning SMF-28e or customized
Wavelength Dependent Loss (dB)Typ.0.20.20.20.30.30.3
Max.0.30.30.30.50.50.5
Temperature Stability (-40~+85°C) (dB)Typ.0.30.30.30.40.40.4
Max.0.50.50.50.50.50.5
Operating Temperature (°C)-40~+85°C
Storage Temperature (°C)-40~+85°C



Table 3: Performance for 2×N PLC Splitter

Note: All measurements are done at room temperature without connectors.

Port Configuration2×22×42×82×162×322×64
Operating Wavelength (nm)1260~1650
Insertion Loss (dB)4.07.611.014.517.521.0
Loss Uniformity (dB)0.81.51.52.02.52.5
Return Loss (dB)555555555555
PDL (dB)0.20.20.40.40.40.4
Directivity (dB)555555555555
Fiber Length (m)1.0 or customized
Fiber TypeCorning SMF-28e or customized
Wavelength Dependent Loss (dB)0.50.50.50.50.50.5
Temperature Stability (-40~+85°C) (dB)0.50.50.50.50.50.5
Operating Temperature (°C)-40~+85°C
Storage Temperature (°C)-40~+85°C



Table 4: Performance for 2×N PLC Splitter

Note: All measurements are done at room temperature with connectors.

Port Configuration2×22×42×82×162×322×64
Operating Wavelength (nm)1260~1650
Insertion Loss (dB)4.58.111.615.018.021.5
Loss Uniformity (dB)0.81.51.52.02.52.5
Return Loss (dB)555555555555
PDL (dB)0.20.20.40.40.40.4
Directivity (dB)555555555555
Fiber Length (m)1.0 or customized
Fiber TypeCorning SMF-28e or customized
Wavelength Dependent Loss (dB)0.50.50.50.50.50.5
Temperature Stability (-40~+85°C) (dB)0.50.50.50.50.50.5
Operating Temperature (°C)-40~+85°C
Storage Temperature (°C)-40~+85°C



Package Dimensions:

Size

(L×W×H) (mm)

Port
128×101×251×22×21×42×41×82×8

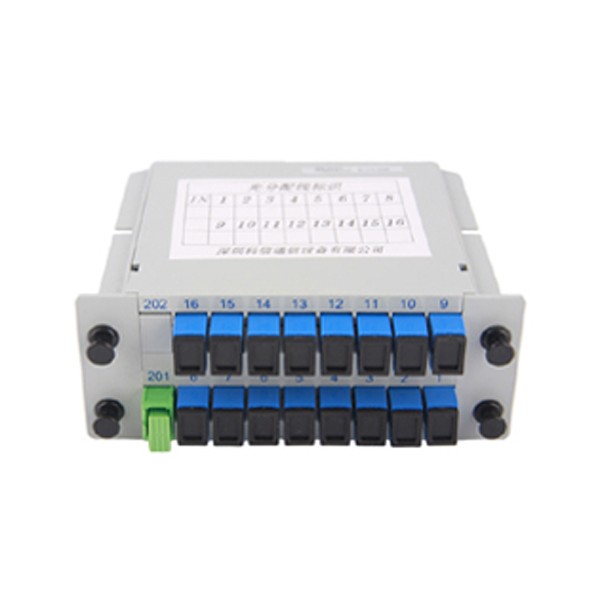

128×101×511×162×16
130×101×1021×322×32

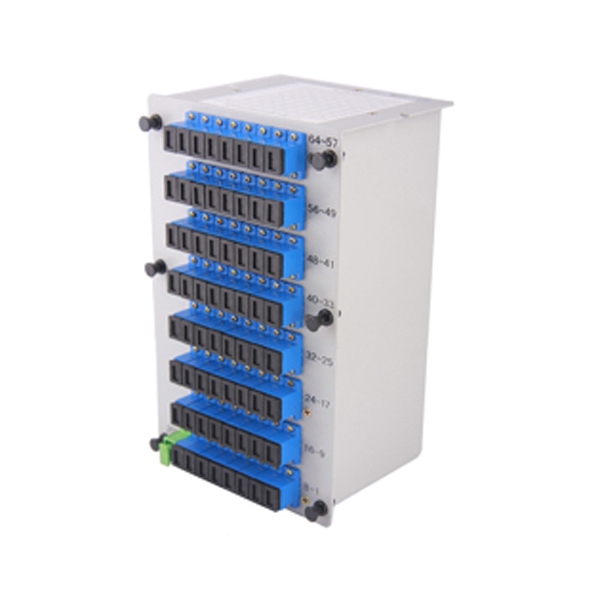

130×101×2061×642×64



Ordering Information:

BrandLW
NamePLC: PLC Splitter
PackageI: insertion module
Port12: 1×2

14: 1×4

18: 1×8

116: 1×16

132: 1×32

164: 1×64

22: 2×2

24: 2×4

28: 2×8

216: 2×16

232: 2×32

264: 2×64

ConnectorSU: SC/UPC

SA: SC/APC

FU: FC/UPC

FA: FC/APC

LU: LC/UPC

LA: LC/APC
