Description:

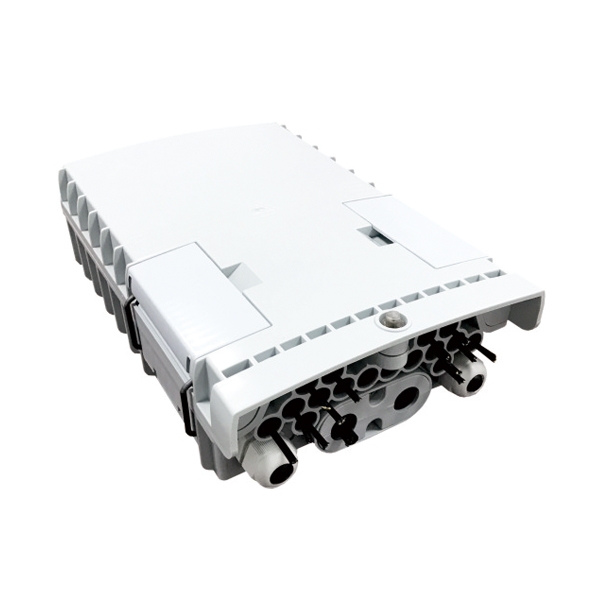

Mini Rapid Fiber Distribution Terminal provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. Mini Rapid Fiber Distribution Terminal helps save installation time and labor cost by pulling the pre-stored 4mm fiber optic cable at Mini Rapid Fiber Distribution Terminal.
LW-ODB-12C Mini Rapid Fiber Distribution Terminal integrates fiber cable fixation, storage, splicing and distribution in bpth outdoor and indoor wall mounting and outdoor pole mounting box.
Features:
- Water-proof design with IP65 Protection level

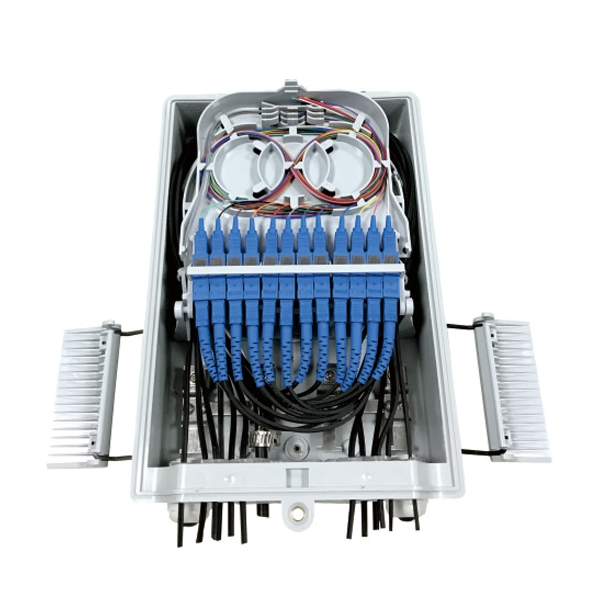

- Integrated with a splice tray and a cable management system
- Fiber bending radius control for more than 40mm
- Suitable for the fusion splice or mechanical splice
- 1×8 blockless spitter can be installed as an option

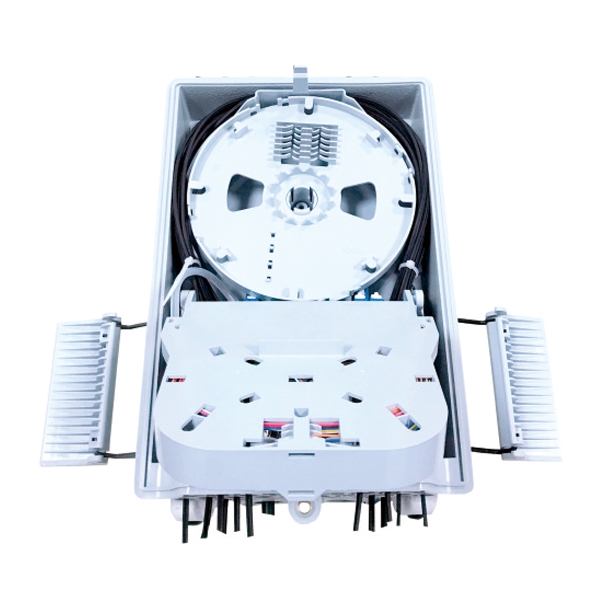

- 40m of 2*3mmFTTH Drop Cable or 30m of 4mm mini armored cable can be stored in the freewheeling reel and can be pulled out from the freewheeling reel.
Specification:
| Max. Capacity | SC: 12 fibers LC: 24 fibers |
| Max. Inlet Cable Diameter | 14mm |
| Inlet Cable Number | 2 ports and 1 uncut cable port |
| Max. Outlet Cable Diameter | 4.5×7.5mm |
| Outlet Cable Number | 12pcs |
| Protection Grade | IP65 |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 274(H)*175(W)*82(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
Ordering Information: LW-ODB-12C-XX-XX-XX-XX-XX-XX:
| Model | LW-ODB-12C |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC LC: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail SC: SC/UPC SA: SC/APC LC: LC/UPC LA: LC/APC |
| XX: Splitter | None: without splitter B12: 1×2 B14: 1×4 B18: 1×8 |
| XX: Cable Type | None: without cable DC: 2×3mm Drop Cable MA: Mini Armor 4mm |
| XX: Cable Length | None: without cable 20: 20m 30: 30m |
| XX: Mounting Method | W: wall mounting P: pole mounting |
