Description:

Fiber Terminal Box FTB provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. Linkwell provides Fiber Terminal Box FTB which is made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

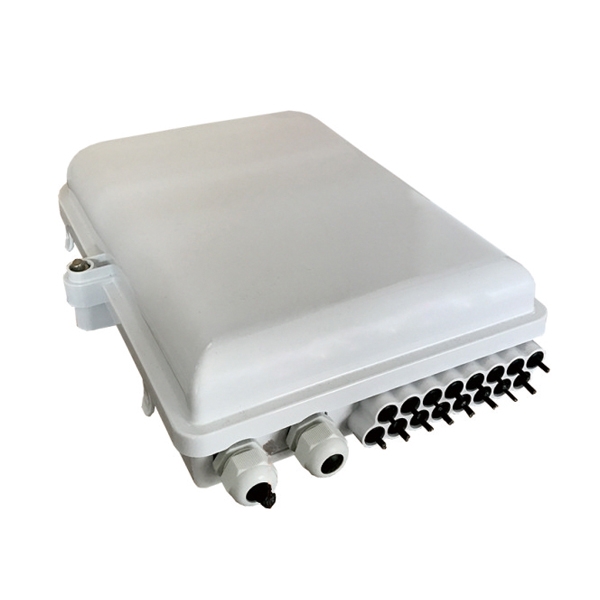

LW-ODB-16C Fiber Terminal Box FTB integrates fiber cable fixation, storage, splicing and distribution in both outdoor and indoor wall mounting and outdoor pole mounting box.



Features:

  • Water-proof design with IP65 Protection level
  • Integrated with a splice tray and a cable management system
  • Fiber bending radius control for more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • 1×8 or 1×16blockless spitter can be installed as an option



Specification:

Max. CapacitySC: 16 fibers

LC: 32 fibers

Max. Inlet Cable Diameter15mm
Inlet Cable Number2pcs
Max. Outlet Cable Diameter2×3mm
Outlet Cable Number16pcs
Protection GradeIP65
Installation MethodWall mounting
Working EnvironmentOutdoor and indoor
Dimension300(H)*222(W)*73(D)mm
Working Temperature-20°C~+60°C
Storage Temperature-40°C~+70°C
Relative Humidity0%~95%
Air Pressure70~106KPa



Ordering Information: LW-ODB-16C-XX-XX-XX-XX:

ModelLW-ODB-16C
XX: AdapterNone: without adapter

SC: SC/UPC

SA: SC/APC

LC: LC/UPC

LA: LC/APC

XX: PigtailNone: without pigtail

SC: SC/UPC

SA: SC/APC

LC: LC/UPC

LA: LC/APC

XX: SplitterNone: without splitter

B12: 1×2

B14: 1×4

B18: 1×8

B116: 1×16

XX: Inlet Cable PortCG: waterproof cable gland

UN: uncut cable port
