Optical Distribution Point ODP Box - 24 Fibers
LW-ODB-24D Optical Distribution Point ODP Box – 24 Fibers
2018-06-20

Description:

Optical Distribution Point ODP Box provides connection point between distribution cables and drop cables at the subscriber access point in fiber optic network. Optical Distribution Point ODP Box is made of high quality PC and ABS plastic alloy from 2 fibers to 96 fibers.

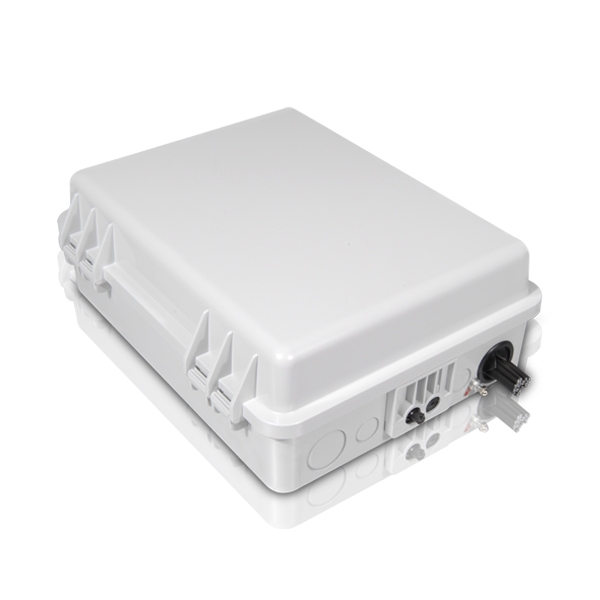

LW-ODB-24C Optical Distribution Point ODP Box integrates fiber cable fixation, storage, splicing and distribution in both outdoor and indoor wall mounting and outdoor pole mounting box in Optical Distribution Point ODP.



Features:

  • Water-proof design with IP65 Protection level
  • Integrated with a splice tray and a cable management system
  • Fiber bending radius control for more than 40mm
  • Suitable for the fusion splice or mechanical splice



Specification:

Max. CapacitySC: 24 fibers

LC: 48 fibers

Max. Inlet Cable Diameter15mm
Inlet Cable Number1 uncut cable port
Max. Outlet Cable Diameter2×3mm
Outlet Cable Number1pc
Protection GradeIP65

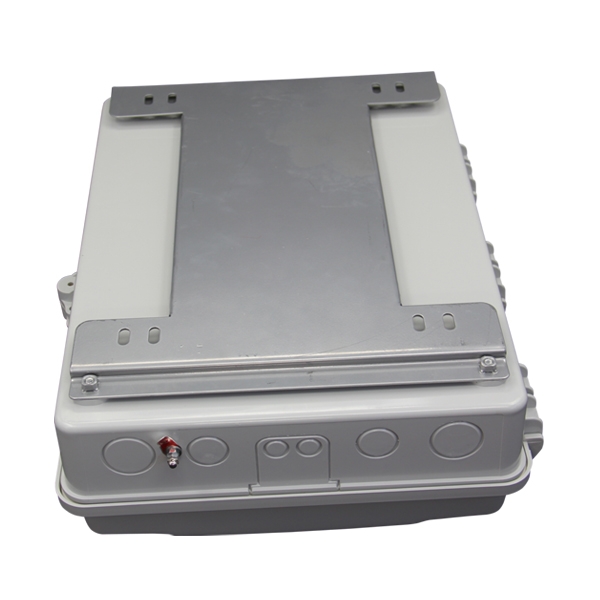

Installation MethodWall mounting and pole mounting (back plate and pole ring are optional)
Working EnvironmentOutdoor and indoor
Dimension330(H)*260(W)*130(D)mm
Working Temperature-20°C~+60°C
Storage Temperature-40°C~+70°C
Relative Humidity0%~95%
Air Pressure70~106KPa



Ordering Information: LW-ODB-24C-XX-XX:

ModelLW-ODB-24C
XX: AdapterNone: without adapter

SC: SC/UPC

SA: SC/APC

LC: LC/UPC

LA: LC/APC

XX: PigtailNone: without pigtail

SC: SC/UPC

SA: SC/APC

LC: LC/UPC

LA: LC/APC

XX: Mounting MethodW: wall mounting

P: pole mounting
