Description:
Fiber Optic Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. Linkwell provides Fiber Optic Distribution Box which is made of high quality PC, ABS plastic alloy ,and SMC material from 2 fibers to 96 fibers.

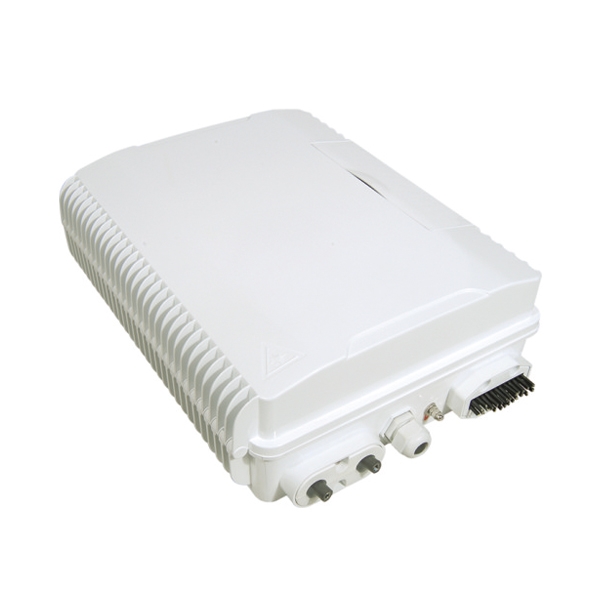

LW-ODB-24E Fiber Optic Distribution Box integrates fiber cable fixation, storage, splicing and distribution in both outdoor and indoor wall mounting and outdoor pole mounting box.
Features:
- Water-proof design with IP65 Protection level

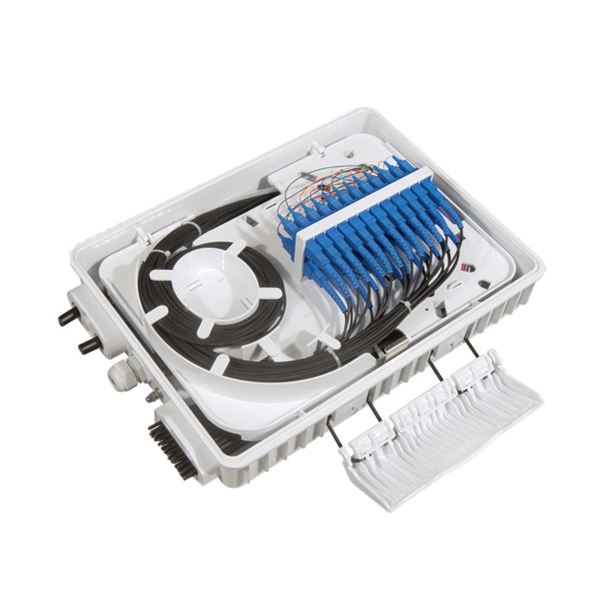

- Integrated with a splice tray and a cable management system
- Fiber bending radius control for more than 40mm
- Suitable for the fusion splice or mechanical splice
Specification:
| Max. Capacity | SC: 24 fibers LC: 48 fibers |
| Max. Inlet Cable Diameter | 16mm |
| Inlet Cable Number | 1 cable gland and 1 uncut cable port |
| Max. Outlet Cable Diameter | 2×3mm |
| Outlet Cable Number | 24pcs |
| Protection Grade | IP65 |
| Installation Method | Wall mounting and pole mounting (back plate and pole ring are optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 340(H)*250(W)*110(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
Ordering Information: LW-ODB-24E-XX-XX-XX-XX:
| Model | LW-ODB-24E |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC LC: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail SC: SC/UPC SA: SC/APC LC: LC/UPC LA: LC/APC |
| XX: Splitter | None: without splitter B12: 1×2 B14: 1×4 B18: 1×8 B116: 1×16 |
| XX: Mounting Method | W: wall mounting P: pole mounting |
