Description:
Optical Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. Linkwell provides Optical Distribution Box which is made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

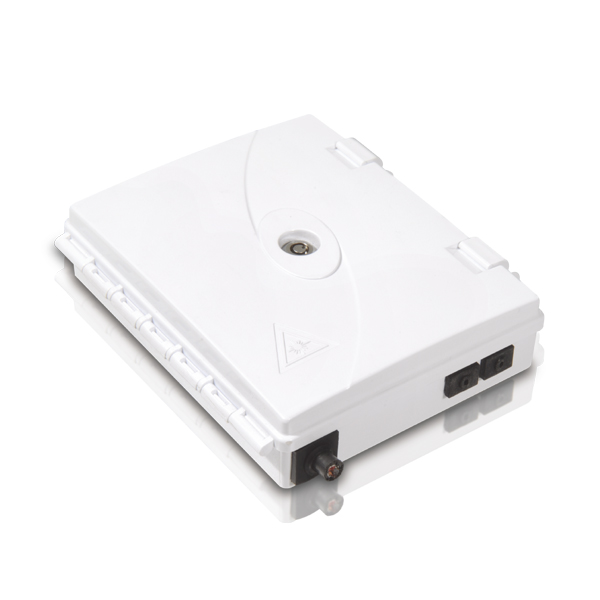

LW-ODB-2C Optical Distribution Box integrates fiber cable fixation, storage, splicing and distribution in both outdoor and indoor wall mounting box.
Features:
- Water-proof design with IP65 Protection level

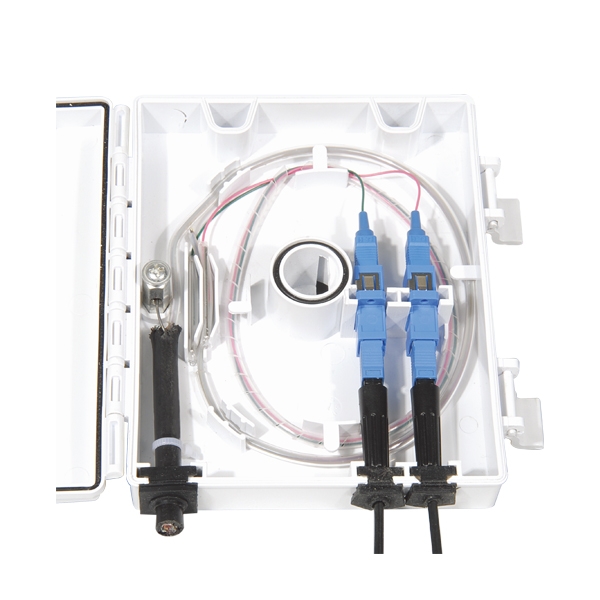

- Integrated with a splice tray and a cable management system
- Fiber bending radius control for more than 40mm
- Suitable for the fusion splice or mechanical splice
Specification:
| Max. Capacity | SC: 2 fibers LC: 4 fibers |
| Max. Inlet Cable Diameter | 5mm |
| Inlet Cable Number | 1pc |
| Max. Outlet Cable Diameter | 3mm |
| Outlet Cable Number | 2pcs |
| Protection Grade | IP65 |
| Installation Method | Wall mounting |
| Working Environment | Outdoor and indoor |
| Dimension | 150(H)*120(W)*37(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
Ordering Information: LW-ODB-2C-XX-XX:
| Model | LW-ODB-2C |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC LC: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail SC: SC/UPC SA: SC/APC LC: LC/UPC LA: LC/APC |
