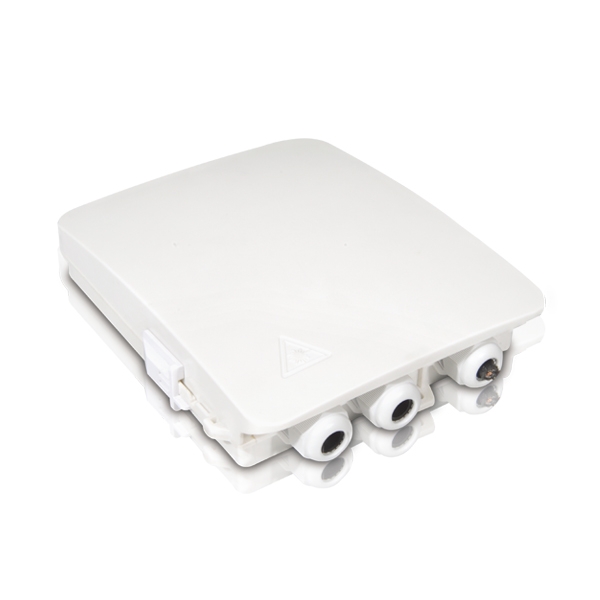

LW-ODB-8B Optical Distribution Box - 8 Fibers
8 Fibers Optical Distribution Box
LW-ODB-8A Optical Distribution Box – 8 Fibers
2018-06-11
飞天2017 1曲
LW-ODB-8C Fiber Optic Junction Box
2020-12-12

Description:

Optical Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. Linkwell provides Optical Distribution Box  which is made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

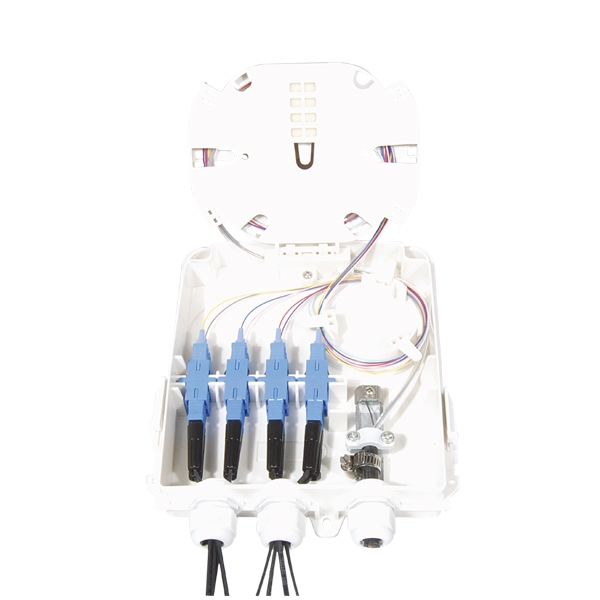

LW-ODB-8B Optical Distribution Box integrates fiber cable fixation, storage, splicing and distribution in both outdoor and indoor wall mounting box.



Features:

  • Water-proof design with IP65 Protection level
  • Integrated with a splice tray and a cable management system
  • Fiber bending radius control for more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • 1×8 blockless spitter can be installed as an option



Specification:

Max. CapacitySC: 8 fibers

LC: 16 fibers

Max. Inlet Cable Diameter12mm
Inlet Cable Number1pc
Max. Outlet Cable Diameter2×3mm
Outlet Cable Number2pcs
Protection GradeIP65
Installation MethodWall mounting
Working EnvironmentOutdoor and indoor
Dimension199(H)*160(W)*46(D)mm
Working Temperature-20°C~+60°C
Storage Temperature-40°C~+70°C
Relative Humidity0%~95%
Air Pressure70~106KPa



Ordering Information: LW-ODB-8B-XX-XX-XX:

ModelLW-ODB-8B
XX: AdapterNone: without adapter

SC: SC/UPC

SA: SC/APC

LC: LC/UPC

LA: LC/APC

XX: PigtailNone: without pigtail

SC: SC/UPC

SA: SC/APC

LC: LC/UPC

LA: LC/APC

XX: SplitterNone: without splitter

B12: 1×2

B14: 1×4

B18: 1×8
