Description:
Optical Splitter Box provides fiber optic cable management for the connection of distribution cables and drop cables via Insertion Module PLC Splitter at the user access point in FTTH Passive Optical Network. Insertion Module PLC Splitter in Optical Splitter Box is a standard modular splitter, which can protect PLC Splitter well and be deployed fast. Linkwell provides Optical Splitter Box which is made of high quality PC and ABS plastic alloy from 2 fibers to 64 fibers splitting.

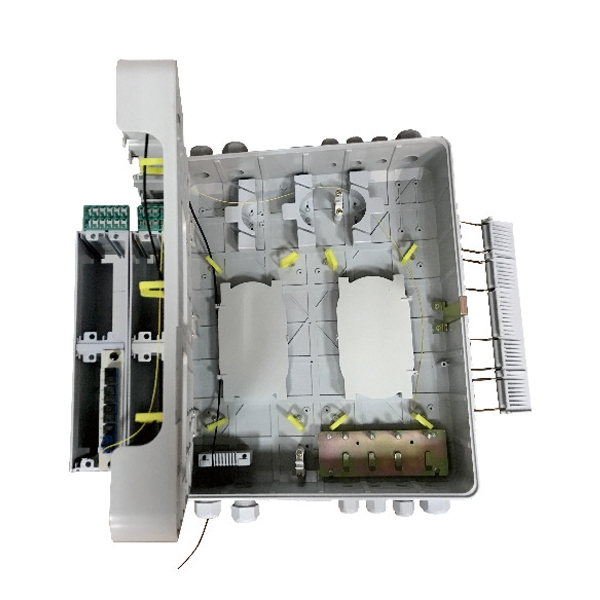

LW-OSB-64A Optical Splitter Box integrates fiber cable fixation, storage, splicing, distribution and splitting in both outdoor and indoor wall mounting box.
Features:
- Water-proof design with IP65 Protection level
- Integrated with a splice tray and a cable management system
- Fiber bending radius control for more than 40mm
- Suitable for the fusion splice or mechanical splice
Specification:
| Max. Splitter Capacity | 2pcs of 1×32 splitters, 4pcs of 1×16 splitters or 8pcs of 1×8 splitters |
| Max. Inlet Cable Diameter | 22mm |
| Inlet Cable Number | 4 cable glands |
| Max. Outlet Cable Diameter | 22mm |
| Outlet Cable Number | 2 cable glands |
| Protection Grade | IP65 |
| Installation Method | Wall mounting and pole mounting (pole ring are optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 520(H)*400(W)*200(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
Ordering Information: LW-OSB-64A-XX-XX-XX-XX-XX:
| Model | LW-OSB-64A |
| XX: Splitter | None: without splitter I12: 1×2 I14: 1×4 I18: 1×8 I116: 1×16 I132: 1×32 |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC |
| XX: Pigtail | None: without pigtail SC: SC/UPC SA: SC/APC |
| XX: Mounting Method | W: wall mounting P: pole mounting |
