Description:

Optical Splitter Box provides fiber optic cable management for the connection of distribution cables and drop cables via Insertion Module PLC Splitter at the user access point in FTTH Passive Optical Network. Insertion Module PLC Splitter in Optical Splitter Box is a standard modular splitter, which can protect PLC Splitter well and makr the splitter be deployed fast. Linkwell provides Optical Splitter Box whihc is made of high quality PC and ABS plastic alloy from 2 fibers to 64 fibers splitting.

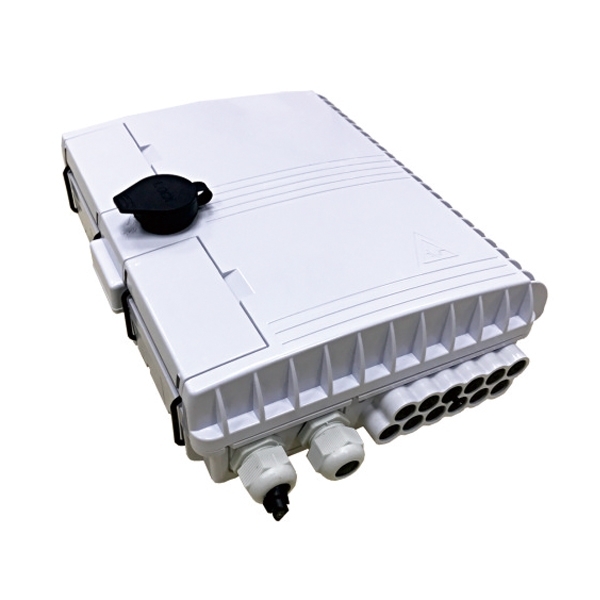

LW-OSB-8B Optical Splitter Box integrates fiber cable fixation, storage, splicing, distribution and splitting in both outdoor and indoor wall mounting and outdoor pole mounting box.



Features:

  • Water-proof design with IP65 Protection level
  • Integrated with a splice tray and a cable management system
  • Fiber bending radius control for more than 40mm
  • Suitable for the fusion splice or mechanical splice



Specification:

Max. Capacity1pc of 1×8 splitter
Max. Inlet Cable Diameter15mm
Inlet Cable Number2pcs (uncut cable port is optional)
Max. Outlet Cable Diameter4.6mm
Outlet Cable Number8pcs
Protection GradeIP65
Installation MethodWall mounting and pole mounting (pole ring is optional)
Working EnvironmentOutdoor and indoor
Dimension250(H)*200(W)*72(D)mm
Working Temperature-20°C~+60°C
Storage Temperature-40°C~+70°C
Relative Humidity0%~95%
Air Pressure70~106KPa



Ordering Information: LW-OSB-8B-XX-XX-XX-XX-XX:

ModelLW-OSB-8B
XX: SplitterNone: without splitter

I12: 1×2

I14: 1×4

I18: 1×8

XX: AdapterNone: without adapter

SC: SC/UPC

SA: SC/APC

XX: PigtailNone: without pigtail

SC: SC/UPC

SA: SC/APC

XX: Inlet Cable PortCG: waterproof cable gland

UN: uncut cable port

XX: Mounting MethodW: wall mounting

P: pole mounting
