Description:

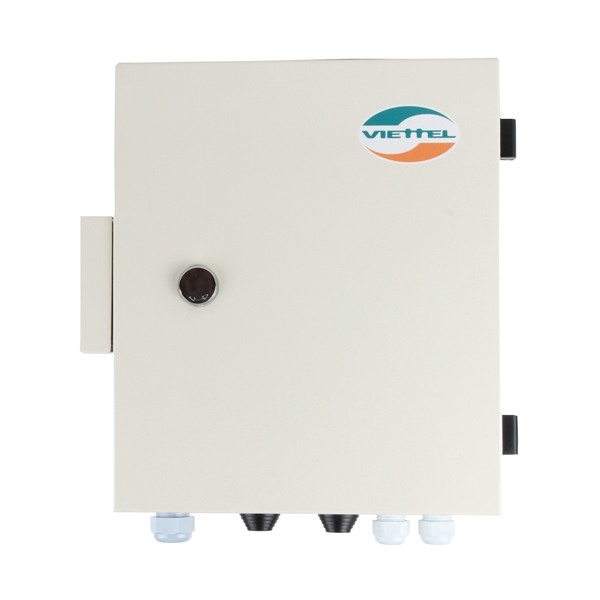

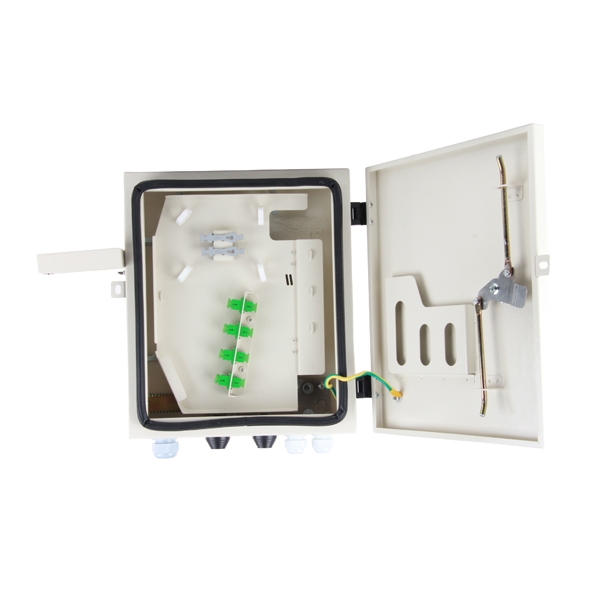

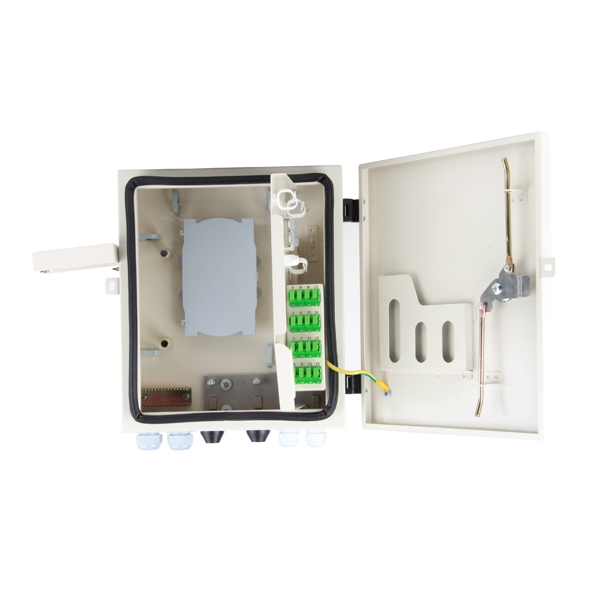

Outdoor Pole Mount Fiber Splitter Box FSB is used for fiber optic cable termination, distribution and splitting the Optical Distribution Point in Fiber to the Home network. Pole Mount Fiber Splitter Box FSB offers multi-functions of fiber optic cable management for optical fiber fixation, fusion, splitting and patching on pole for outdoor application.
Features:
- Cable clamping and strength member fixation system
- Suitable for outdoor cable and FTTH Drop Cable
- Excellent waterproof and dust-proof sealing
- Magnetic locking system
- With document holder
Specifications:
| Applicable Adapter | SC or duplex LC |
| Capacity | 8 or 16 fibers |
| Applicable Splitter | 1*4, 1*8, 1*16 |
| Material | cold rolled steel |
| Color | grey |

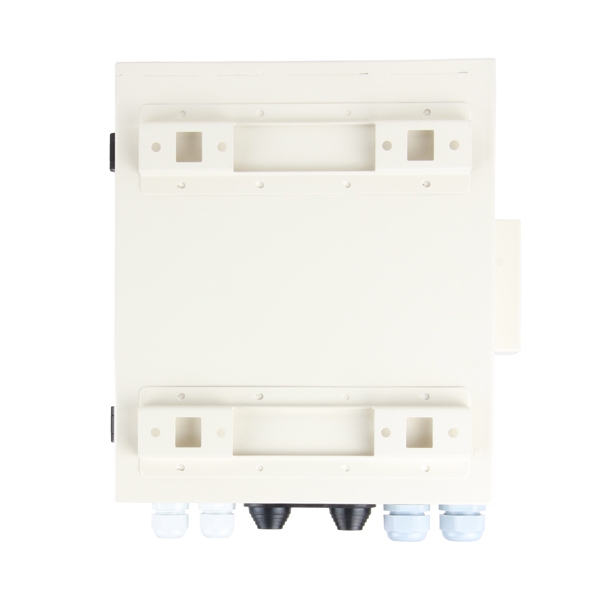

| Installation Method | Wall mounting and pole mounting |

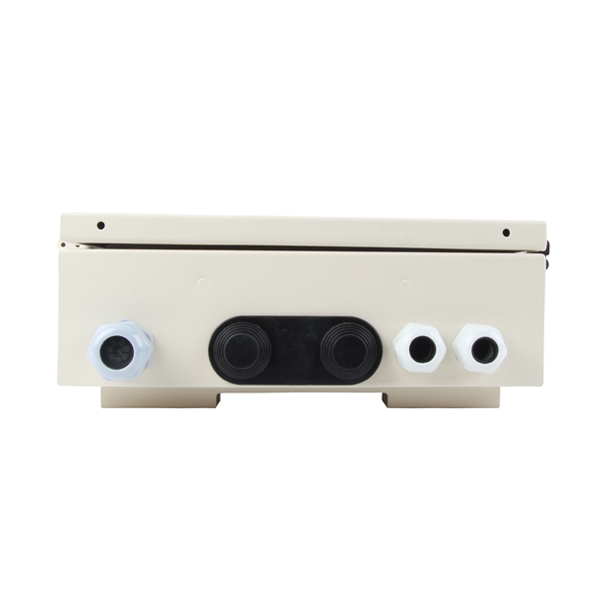

| Feeder Cable Ports | 4 ports (2 rubber ports & 4 cable glands) |
| Drop Cable Port | 8 fibers: 1 cable gland (8 drop cable ports in the cable gland) 16 fibers: 2 cable glands (8 drop cable ports in each cable gland) |
| Dimension | 8 fibers: 340(H)*300(W)*100(D)mm 16 fibers: 340(H)*300(W)*116(D)mm |
| Net Weight | 8 fibers: 5.8kgs 16 fibers: 6.3kgs |
Ordering Information: LW-FSB-O10-XX-XX-XX-XX:
| Model | LW-FSB-O10 |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC FC: FC/UPC FA: FC/APC LC: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without adapter SC: SC/UPC SA: SC/APC FC: FC/UPC FA: FC/APC LC: LC/UPC LA: LC/APC |
| XX: Fiber Capacity | 8: 8 fibers 16: 16 fibers |
| XX: Splitter | B14: 1×4 B18: 1×8 B116: 1×16 |
