Plastic ABS Box PLC Splitter
Fiber Optic PLC Splitter plays a crucial role in distributing optical signals.
The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from the central office to customer premises in FTTx and FTTH networks.
PLC Splitter offers a cost-effective and space-saving networking solution in an optical transmission system.

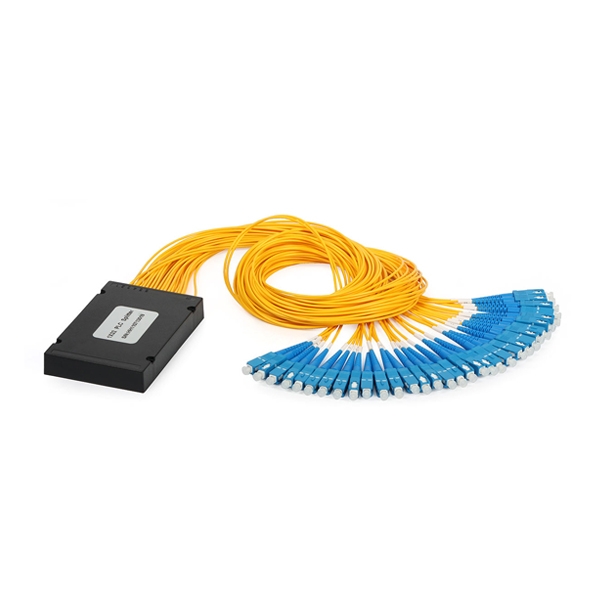

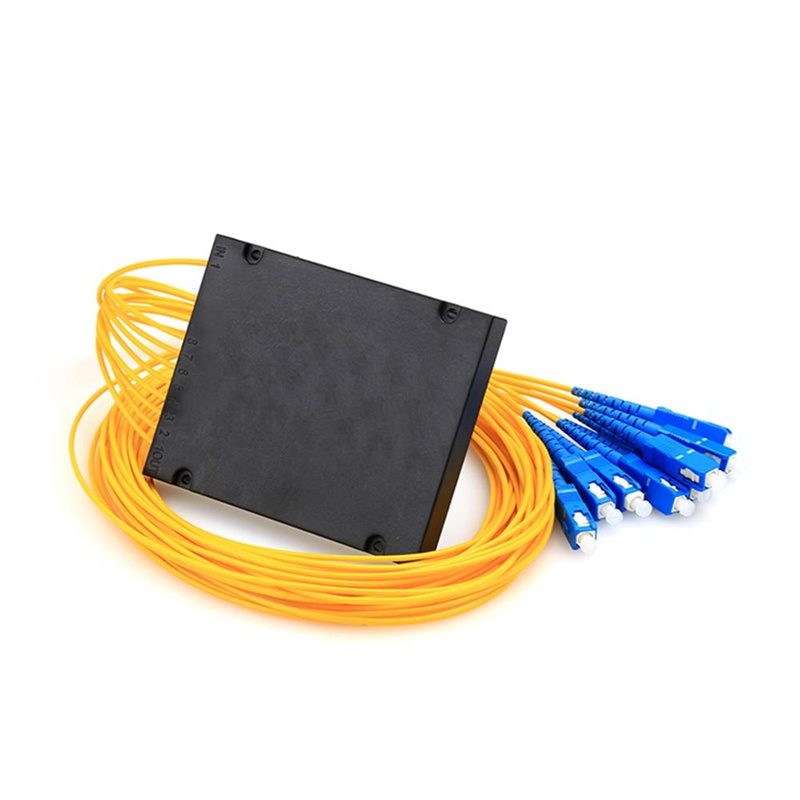

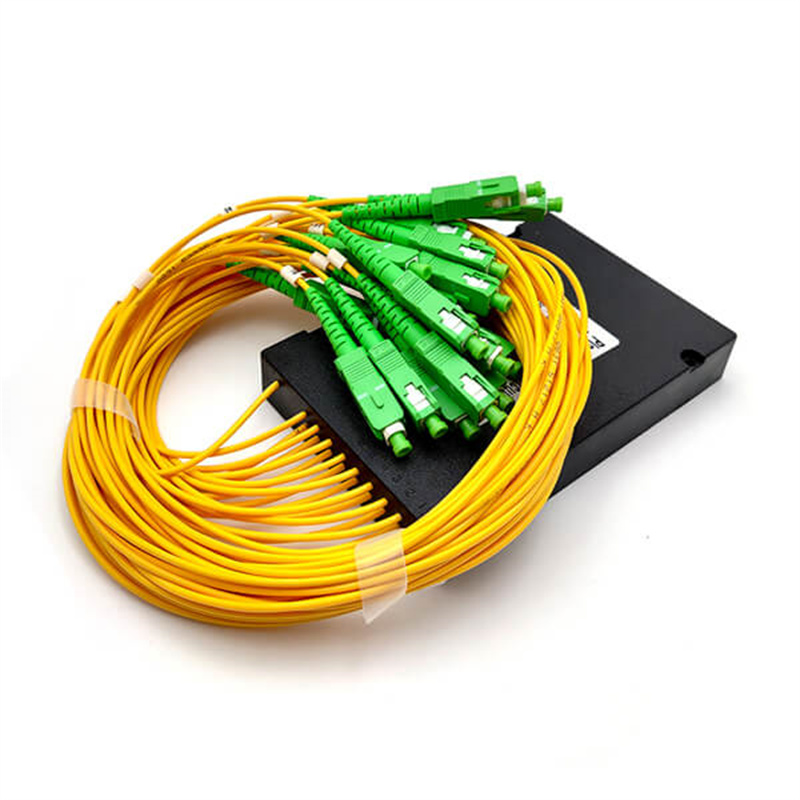

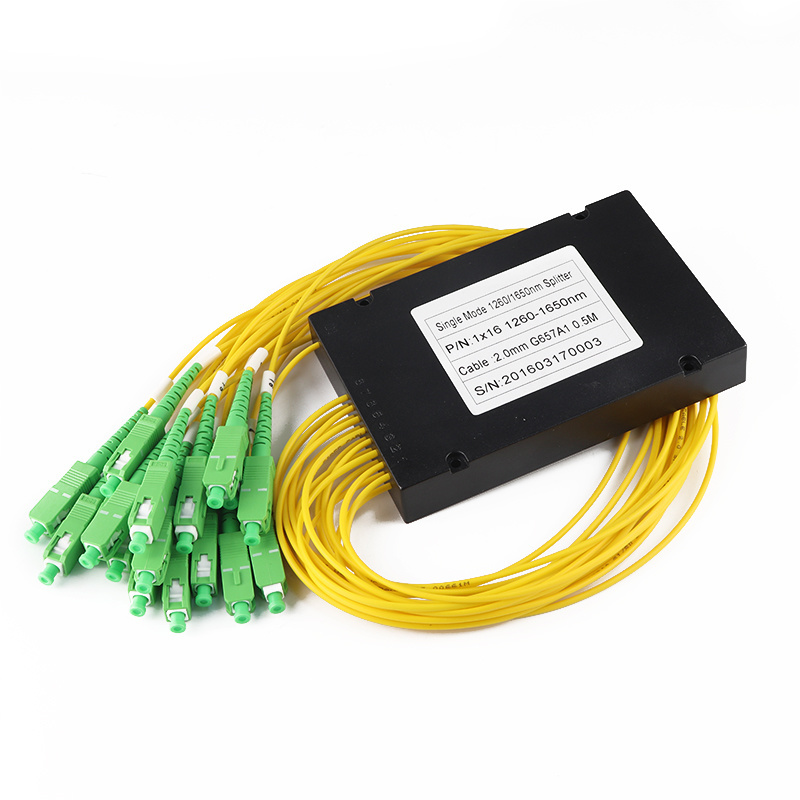

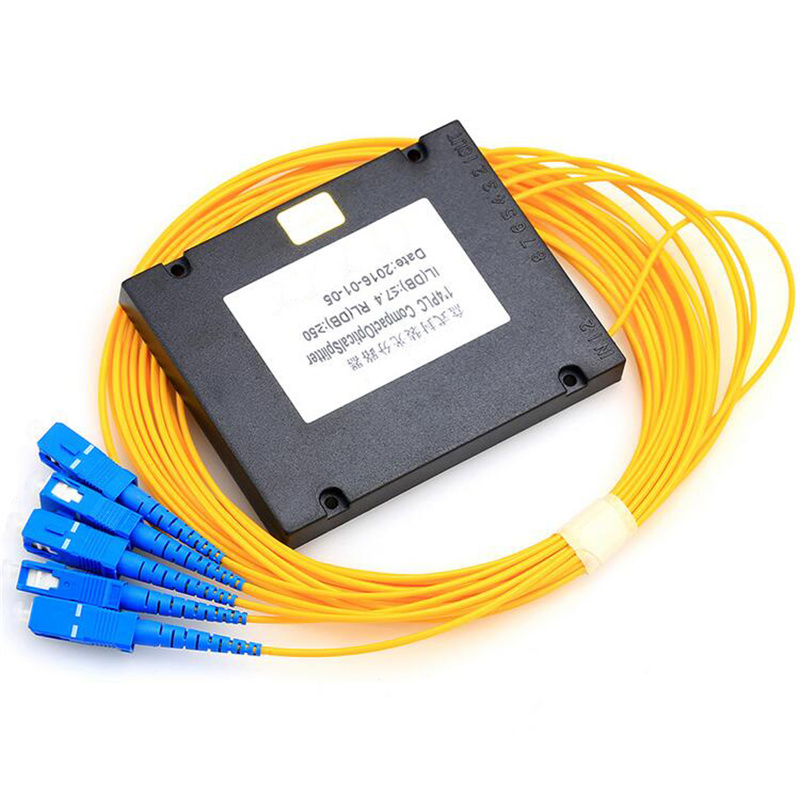

One popular variant of PLC splitters is the Plastic Box PLC Splitter, which is packaged in an ABS box with standard 2.0mm or 3.0mm fiber cable. Plastic Box PLC Splitters are widely used for FTTH Passive Optical Network as passive optical splitters, including EPON (as EPON Splitter) and GPON (as GPON Splitter).
PLC Splitters are available in a variety of port configurations, including 1×2 splitter, 1×4 splitter, 1×8 splitter, 1×16 splitter, 1×32 splitter, 1×64 splitter, etc.
Features:
- Uniform power splitting
- Compact package dimension
- Low polarization-dependent loss
- Good channel-to-channel uniformity
- Low Insertion Loss and High Return Loss
- Environmentally and mechanically stable
- Wide operating wavelength range from 1260nm to 1650nm
Applications:
- Telecommunication networks
- PON (Passive Optical Network)
- FTTX, FTTH (Fiber to the Home)
Standards:
- Telcordia GR-1209 and GR-1221
Specifications:
Table 1: Performance for 1×N PLC Splitter
Note: All measurements are done at room temperature without connectors.
Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Operating Wavelength (nm) | 1260~1650 | ||||||
Insertion Loss (dB) | Typ. | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
Max. | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 | |
Loss Uniformity (dB) | Typ. | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 1.5 |
Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
PDL (dB) | Typ. | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
Fiber Length (m) | 1.0 or customized | ||||||
Fiber Type | Corning SMF-28e or customized | ||||||
Wavelength Dependent Loss (dB) | Typ. | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
Max. | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
Temperature Stability (-40~+85°C) (dB) | Typ. | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
Max. | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Operating Temperature (°C) | -40~+85°C | ||||||
Storage Temperature (°C) | -40~+85°C |
Table 2: Performance for 1×N PLC Splitter
Note: All measurements are done at room temperature with connectors.
Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Operating Wavelength (nm) | 1260~1650 | ||||||
Insertion Loss (dB) | Typ. | 4.0 | 7.0 | 10.3 | 13.5 | 16.5 | 20.0 |
Max. | 4.5 | 7.7 | 11.0 | 14.2 | 17.5 | 21.5 | |
Loss Uniformity (dB) | Typ. | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 1.5 |
Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
PDL (dB) | Typ. | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
Fiber Length (m) | 1.0 or customized | ||||||
Fiber Type | Corning SMF-28e or customized | ||||||
Wavelength Dependent Loss (dB) | Typ. | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
Max. | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
Temperature Stability (-40~+85°C) (dB) | Typ. | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
Max. | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Operating Temperature (°C) | -40~+85°C | ||||||
Storage Temperature (°C) | -40~+85°C |
Table 3: Performance for 2×N PLC Splitter
Note: All measurements are done at room temperature without connectors.
Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.5 | 17.5 | 21.0 |
Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 2.0 | 2.5 | 2.5 |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Fiber Length (m) | 1.0 or customized | |||||
Fiber Type | Corning SMF-28e or customized | |||||
Wavelength Dependent Loss (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Temperature Stability (-40~+85°C) (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature (°C) | -40~+85°C | |||||
Storage Temperature (°C) | -40~+85°C |
Table 4: Performance for 2×N PLC Splitter
Note: All measurements are done at room temperature with connectors.
Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Insertion Loss (dB) | 4.5 | 8.1 | 11.6 | 15.0 | 18.0 | 21.5 |
Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 2.0 | 2.5 | 2.5 |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Fiber Length (m) | 1.0 or customized | |||||
Fiber Type | Corning SMF-28e or customized | |||||
Wavelength Dependent Loss (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Temperature Stability (-40~+85°C) (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature (°C) | -40~+85°C | |||||
Storage Temperature (°C) | -40~+85°C |
Package Dimensions:
Size L×W×H (mm) | Port | ||||||
100×80×10 | 1×2 | 2×2 | 1×4 | 2×4 | 1×8 | 2×8 | |
120×80×18 | 1×16 | 2×16 | |||||
142×102×14.5/ 141×115×18 | 1×32 | 2×32 | |||||
141×115×18 | 1×64 | 2×64 |
Ordering Information:
Brand | LW |
Name | PLC: PLC Splitter |
Package | P: plastic box |
Port | 12: 1×2 14: 1×4 18: 1×8 116: 1×16 132: 1×32 164: 1×64 22: 2×2 24: 2×4 28: 2×8 216: 2×16 232: 2×32 264: 2×64 |
Cable Diameter | 2: 2.0mm 3: 3.0mm |
Cable Length | 0.5: 0.5m 1: 1m 1.5: 1.5m 2: 2m; etc |

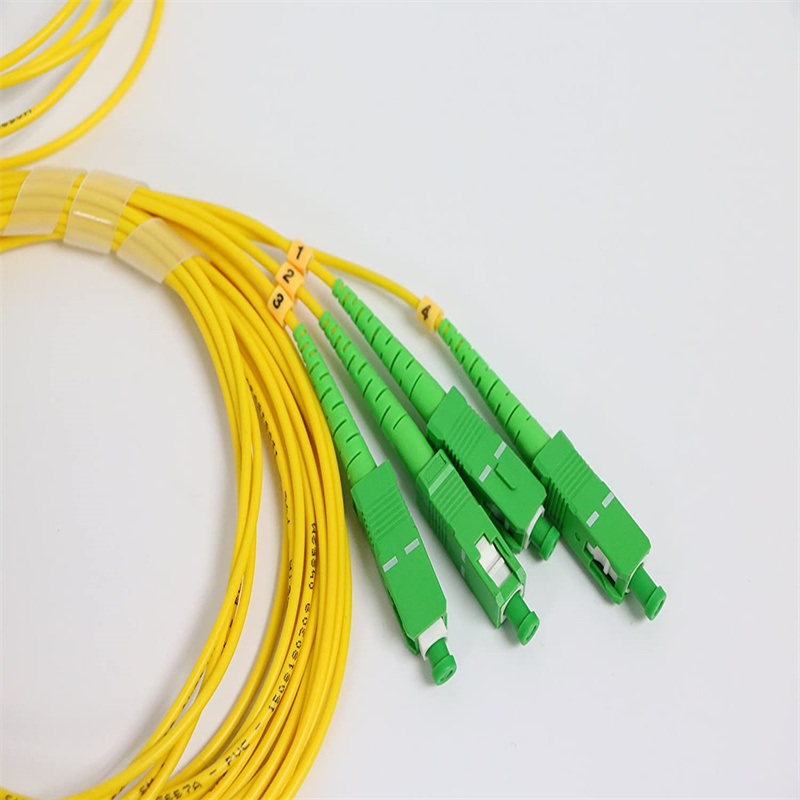

Connector | SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC None=without connectors |
