Rack Mount PLC Splitter
Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network.
The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from the central office to customer premises in FTTx and FTTH networks.
PLC Splitter offers a cost-effective and space-saving networking solution in an optical transmission system.

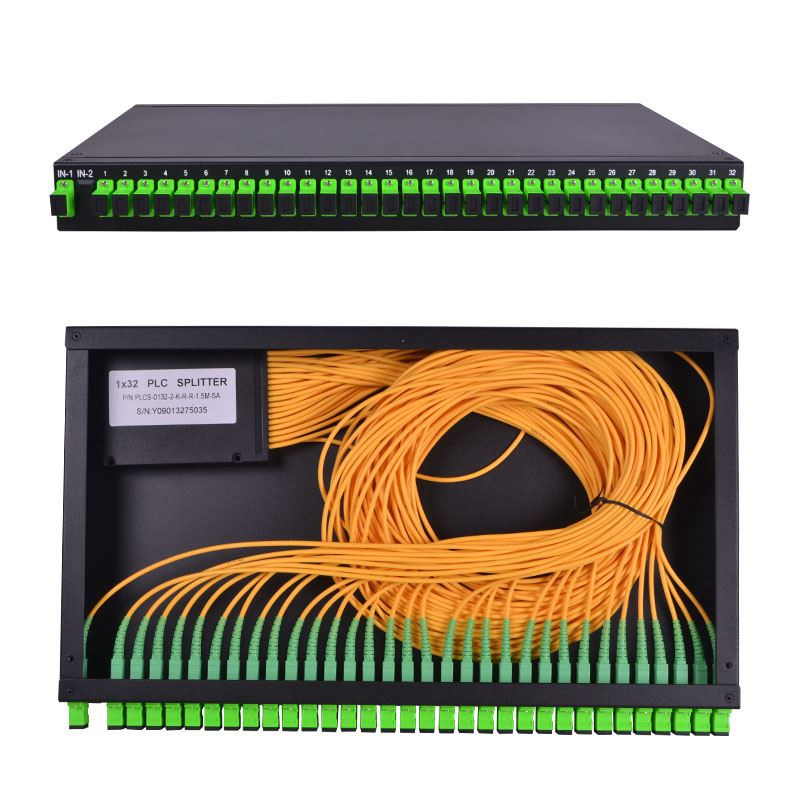

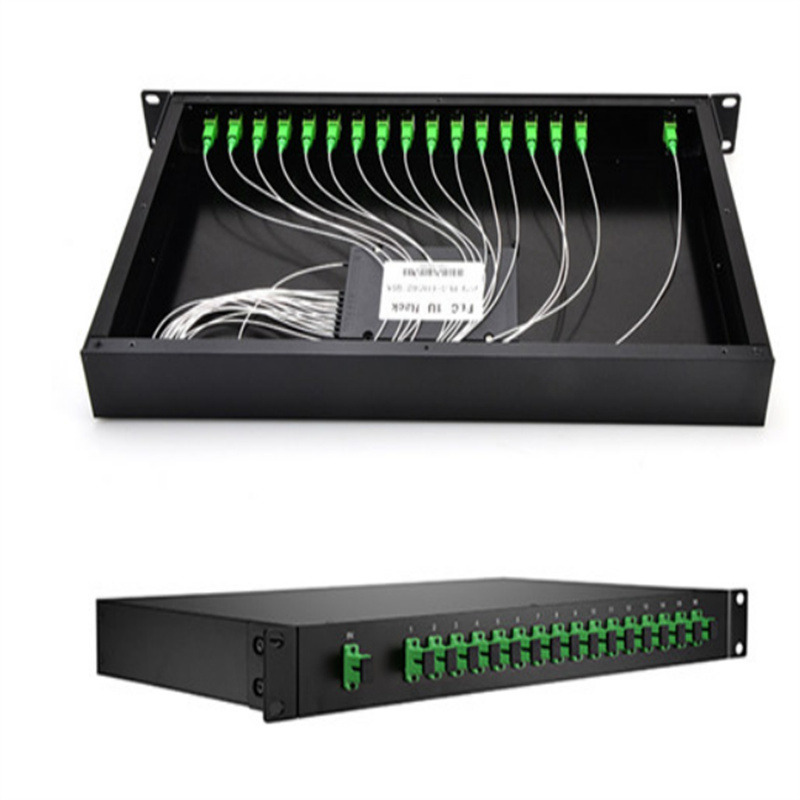

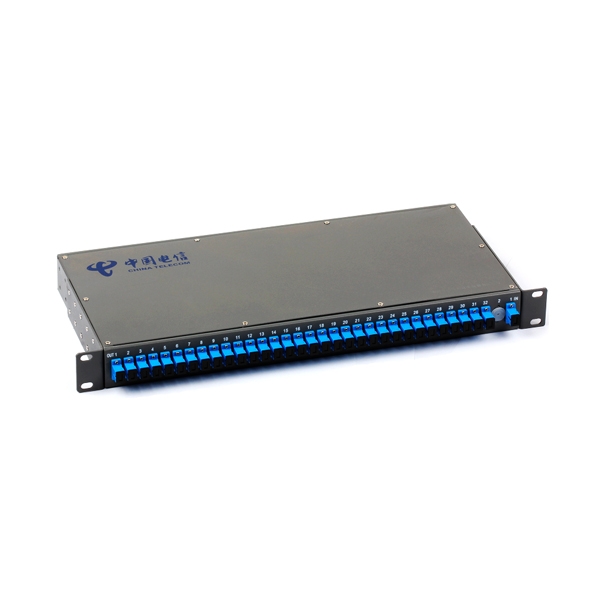

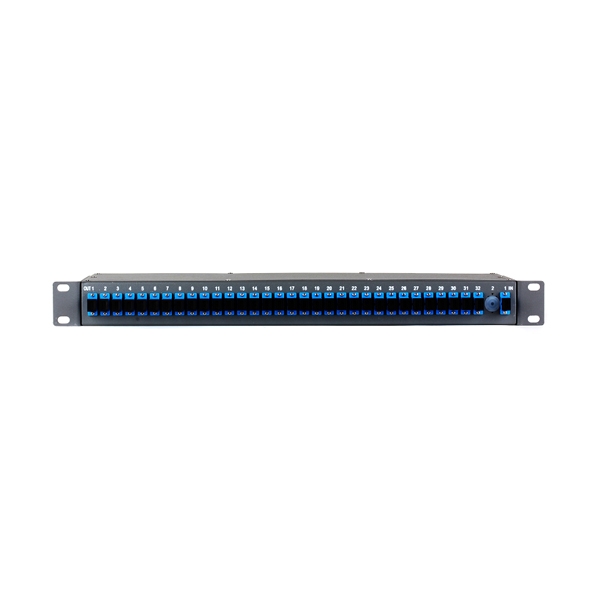

Rack Mount PLC Splitter is typically mounted in a standard 19-inch rack, making them easy to install and manage in data centers, telecom networks, and other optical infrastructure setups.
Rack Mount PLC Splitter is also used in testing and monitoring applications, allowing technicians to split and analyze optical signals for troubleshooting and performance monitoring purposes.
Features:
- Uniform power splitting
- Compact package dimension
- Low polarization-dependent loss
- Good channel-to-channel uniformity
- Low Insertion Loss and High Return Loss
- Environmentally and mechanically stable
- Wide operating wavelength range from 1260nm to 1650nm
Applications:
- Fiber Optic Networks
- Data Centers
- Telecommunication Networks
- Testing and Monitoring
Standards:
- Telcordia GR-1209 and GR-1221
Specifications:
Table 1: Performance for 1×N PLC Splitter
Note: All measurements are done at room temperature without connectors.
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typ. | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max. | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 | |
| Loss Uniformity (dB) | Typ. | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 1.5 |
| Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
| PDL (dB) | Typ. | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
| Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
| Fiber Length (m) | 1.0 or customized | ||||||
| Fiber Type | Corning SMF-28e or customized | ||||||
| Wavelength Dependent Loss (dB) | Typ. | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max. | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Temperature Stability (-40~+85°C) (dB) | Typ. | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max. | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (°C) | -40~+85°C | ||||||
| Storage Temperature (°C) | -40~+85°C | ||||||
Table 2: Performance for 1×N PLC Splitter
Note: All measurements are done at room temperature with connectors.
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typ. | 4.0 | 7.0 | 10.3 | 13.5 | 16.5 | 20.0 |
| Max. | 4.5 | 7.7 | 11.0 | 14.2 | 17.5 | 21.5 | |
| Loss Uniformity (dB) | Typ. | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 1.5 |
| Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
| PDL (dB) | Typ. | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
| Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
| Fiber Length (m) | 1.0 or customized | ||||||
| Fiber Type | Corning SMF-28e or customized | ||||||
| Wavelength Dependent Loss (dB) | Typ. | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max. | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Temperature Stability (-40~+85°C) (dB) | Typ. | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max. | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (°C) | -40~+85°C | ||||||
| Storage Temperature (°C) | -40~+85°C | ||||||
Table 3: Performance for 2×N PLC Splitter
Note: All measurements are done at room temperature without connectors.
| Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.5 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 2.0 | 2.5 | 2.5 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Fiber Length (m) | 1.0 or customized | |||||
| Fiber Type | Corning SMF-28e or customized | |||||
| Wavelength Dependent Loss (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~+85°C) (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~+85°C | |||||
| Storage Temperature (°C) | -40~+85°C | |||||
Table 4: Performance for 2×N PLC Splitter
Note: All measurements are done at room temperature with connectors.
| Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Insertion Loss (dB) | 4.5 | 8.1 | 11.6 | 15.0 | 18.0 | 21.5 |
| Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 2.0 | 2.5 | 2.5 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Fiber Length (m) | 1.0 or customized | |||||
| Fiber Type | Corning SMF-28e or customized | |||||
| Wavelength Dependent Loss (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~+85°C) (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~+85°C | |||||
| Storage Temperature (°C) | -40~+85°C | |||||
Package Dimensions:
| Size | Port | ||||||||||
| 19” 1U | 1×2 | 2×2 | 1×4 | 2×4 | 1×8 | 2×8 | 1×16 | 2×16 | 1×32 | 2×32 | |

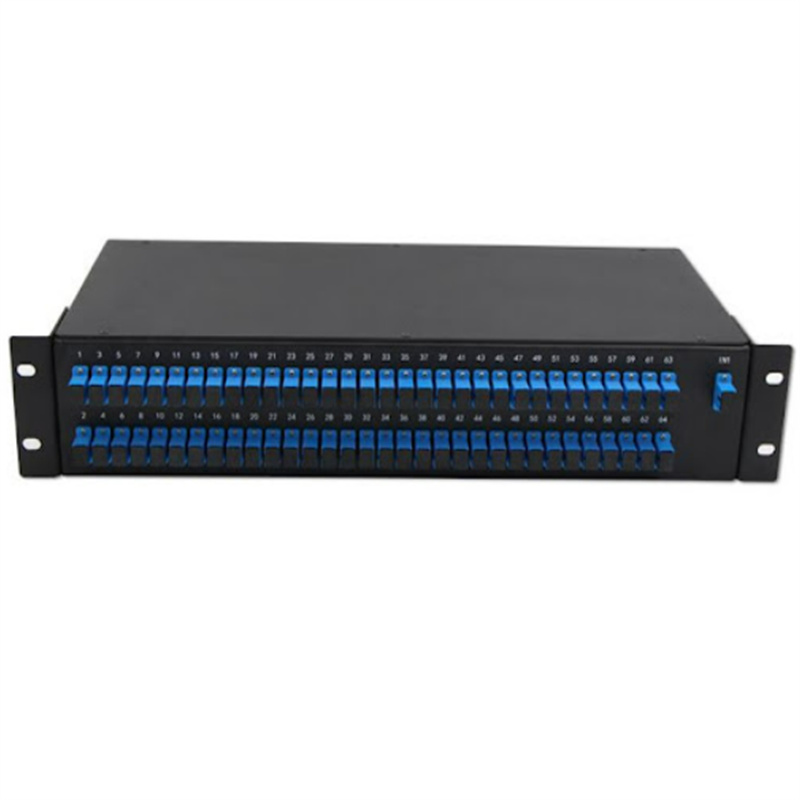

| 19” 2U | 1×64 | 2×64 | |||||||||
Ordering Information:
| Brand | LW |
| Name | PLC: PLC Splitter |
| Package | R: rack mount |
| Dimension | 1: 1U 2: 2U |
| Port | 12: 1×2 14: 1×4 18: 1×8 116: 1×16 132: 1×32 164: 1×64 22: 2×2 24: 2×4 28: 2×8 216: 2×16 232: 2×32 264: 2×64 |
| Number of PLC Splitter | None: 1pc 2: 2pcs 3: 3pcs; etc |
| Cable Diameter | 2: 2.0mm 3: 3.0mm |
| Cable Length | 0.5: 0.5m 1: 1m 1.5: 1.5m 2: 2m; etc |
| Connector | SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC |
May you also like: Differences between FBT splitter and PLC splitter
