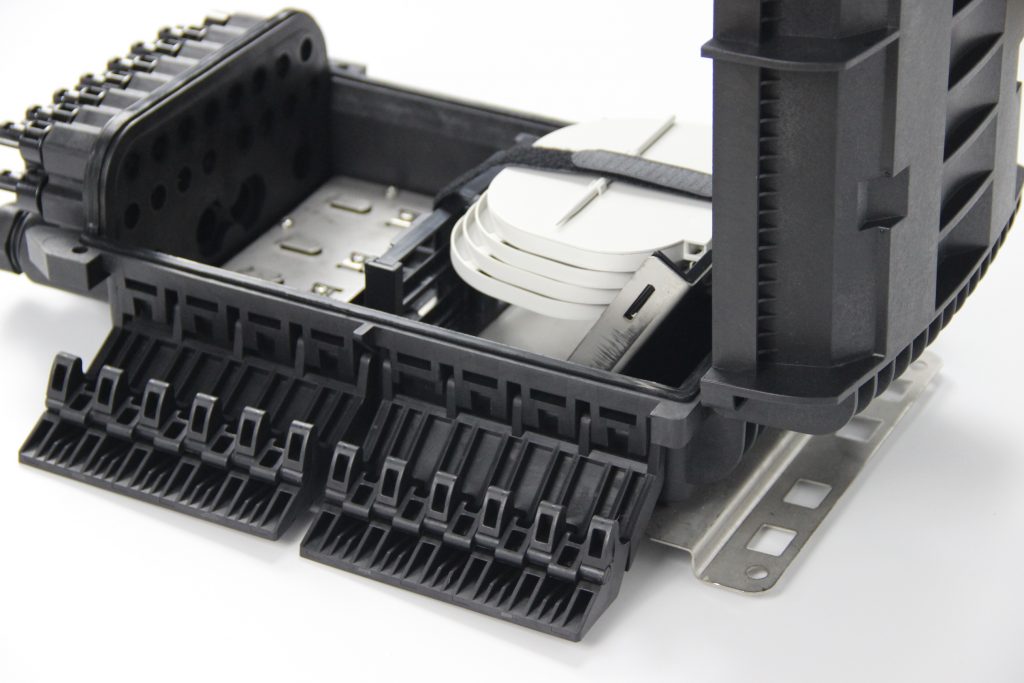

VLNK Mechanical Sealing FTTH Fiber Access Splicing Closure



Description:

The FTTH Fiber Access Splicing Closure is a crucial component in fiber optic networks, particularly in FTTH (Fiber to the Home) installations. This closure plays a vital role in protecting and organizing fiber optic splices, ensuring the integrity and reliability of the network connections.

Designed with durability and functionality in mind, the FTTH Fiber Access Splicing Closure provides a secure environment for splicing fiber optic cables. It is built to withstand harsh environmental conditions, such as moisture, dust, and physical damage, ensuring long-term performance and stability.

This FTTH closure offers convenient access for technicians to perform splicing, termination, and maintenance operations. It allows for efficient cable management, ensuring proper routing and organization of the fiber optic cables. The closure also facilitates future expansions and upgrades, making it a flexible solution for evolving network requirements.



Features:

  • Dis-mountable adaptor panel
  • Support midspan termination
  • Easy operation and installation
  • Rotatable and dis-mountable splice tray for easy splicing
  • IP68 sealing,
  • Supporting Micro PLC Splitters



Applications:

  • Wall mounting & pole mounting installation
  • Suitable for 2*3mmIndoor FTTH Drop Cable and Outdoor Figure 8 FTTH Drop Cable
  • diameter 7mm Drop Cable
ModelVLNK-16-4VLNK-24-2VLNK-24-4VLNK-144VLNK-288VLNK-8PVLNK-16P
Adapter16pcs of SC24pcs of SC24pcs of SCNoneNone8 ports16 ports
Splitter

(Micro Type )

1pc of 1*16 or
2pcs of 1*8
1pc of 1*16 or
2pcs of 1*8
1pc of 1*16 or
2pcs of 1*8
NoneNone1pc of 1*8 PLC Splitters1pc of 1*16 or
2pcs of 1*8
Capacity48(12 fibers/tray)48 (12 fibers/tray)48 (12 fibers/tray)144 (12 trays)288 (12 trays)48 (12 fibers/tray)48 (12 fibers/tray)
Input Ports1 oval uncut port and 2 round ports1 oval uncut port1 oval uncut port and 2 round ports1 oval uncut port and 2 round ports1 oval uncut port and 2 round ports1 oval uncut port and 2 round ports1 oval uncut port and 2 round ports
Output Ports16 Ports24 ports24 ports6 ports6 ports8 ports16 ports
Input Cable SizeΦ8~Φ17.5mmΦ8~Φ17.5mmΦ8~Φ17.5mmΦ8~Φ17.5mmΦ8~Φ17.5mmΦ8~Φ17.5mmΦ8~Φ17.5mm
Out Cable SizeDrop Cable: 2*3mm, 2*5mm Round Cable:
Φ3mm to Φ7mm
Drop Cable: 2*3mm, 2*5mm Round Cable:
Φ3mm to Φ7mm
Drop Cable: 2*3mm, 2*5mm Round Cable:
Φ3mm to Φ7mm
Round Cable:
Φ3mm to Φ7mm
Round Cable:
Φ3mm to Φ7mm
Drop Cable: 2*3mm, 2*5mm Round Cable:
Φ3mm to Φ7mm
Drop Cable: 2*3mm, 2*5mm Round Cable:
Φ3mm to Φ7mm
Pictures  VLNK-16-4VLNK-24-2VLNK-24-4VLNK-144&288VLNK-144&288VLNK-8PVLNK-16P
Dimension385*245*130mm (VLNK-24-4 and VLNK-16P are 385*245*155mm)
Packing540*410*375mm (4pcs per carton)



Installation

Wall MountingVLNK Wall Mounting-1VLNK Wall Mounting-2Pole MountingVLNK Pole Mounting
