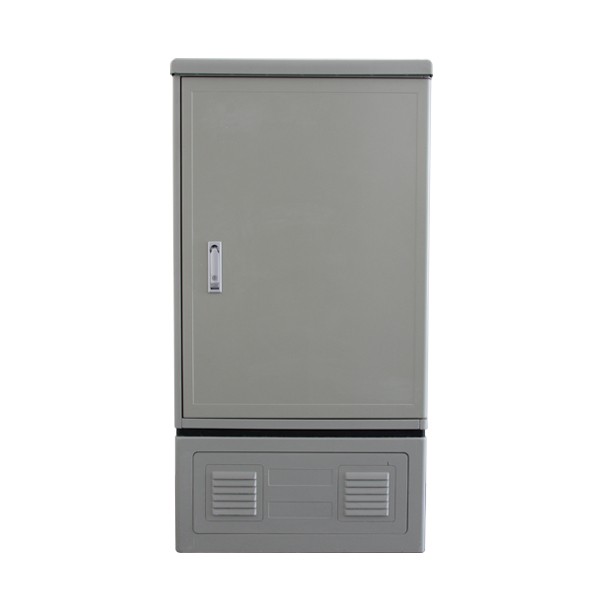

288 Fibers Outdoor Fiber Optic Distribution Cabinet (FDC)
Description:
The Fiber Optic Distribution Cabinet (FDC), also known as FDC, is designed specifically for the cross-connection of fiber optic feeder cables and distribution cables in Fiber the Home (FTTH) networks. It is also used as a protective enclosure for optical fiber splitters in Passive Optical Networks (PON).
The outdoor telecom cabinet is responsible for securing, reserving, and distributing fiber cables, as well as performing fiber splicing, termination, and patching.
The Cabinet is highly reliable in terms of sealing, providing excellent waterproof and dustproof capabilities. Additionally, the housing of the FDC can be customized to accommodate 19-inch rack-mount telecommunication equipment for FTTX applications.
Features:
- Expertise: With a team of highly skilled technical professionals and cutting-edge production/testing equipment, we guarantee that our products consistently deliver outstanding performance.
- Standardization: We rigorously adhere to industry standards and actively engage in the revision of industry specifications.
- Innovation: Based on customer feedback and requirements, we consistently enhance our product offerings, such as the 12-fiber Splice and Distribution Integrated Trays, as well as outdoor cross-connect cabinets, through innovative advancements.
- User-Friendly: We prioritize user-friendly management and operation in the design of our products, ensuring meticulous attention to every detail. The corners of the cabinet are crafted using an arc molding technique and finished with an electrostatic spray coating to achieve a smooth and polished appearance.
- Systemization: We offer a diverse range of products to cater to different application needs. Our product line includes various capacities to ensure we meet the requirements of our customers. In addition to that, we also provide optical accessories like patch cords, pigtails, adapters, and splitters specifically designed for outdoor cross-connect cabinets. Moreover, we offer comprehensive turnkey solutions that cover installation, splicing, and testing processes.

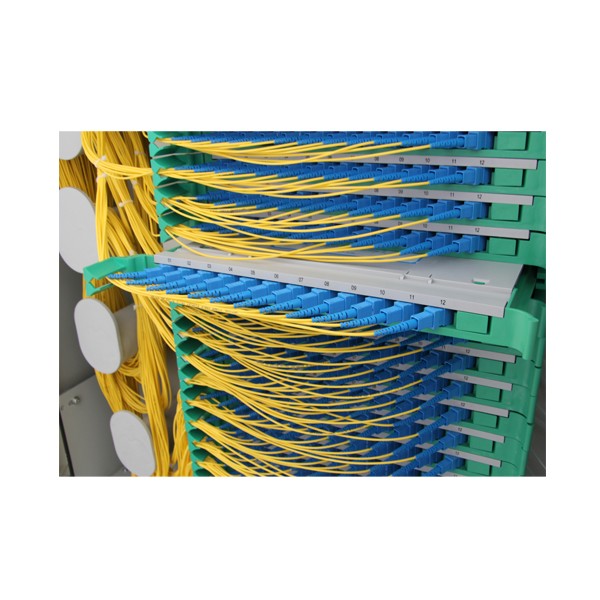

- Modular Design: The Splice and Distribution Integrated Trays and splitter trays, which consist of 12 fibers, have been designed with the intention of facilitating installation and maintenance. These trays are modular, enabling flexible configurations. The interchangeable models of components contribute to shorter delivery times, cost reduction, and simplified installation and maintenance procedures.
Specifications:
| Housing Material | SMC |
| Splice and Distribution Tray Capacity | 12 pieces of SC, FC, or ST adaptors (12 fibers); 12 pieces of duplex LC adaptors (24 fibers); |
| Splice and Distribution Tray Quantity | 24 pieces max. |
| Applicable Adaptor | SC, FC (duplex LC or ST is optional) |
| Adaptor Quantity | 288 pieces max. |
| Direct Splice Capacity | 144 fibers, 12 fibers/tray (can be specified) |
| Installation Method | Floor standing (wall/pole mount is optional) |
| Applicable Environment | outdoor |
| Protection Grade | IP65 |
| Color | gray |
| Net Weight | 80kgs |
| Dimension (H×W×D) | Cabinet: 1100×750×320mm; base: 350×750×320mm |
Technical Parameters:
| Fiber Bending Radius | >37.5mm (protective tubes are furnished for fibers passing through metallic holes.) |
| Cable Bending Radius | >15 times of cable diameter |
| Nominal Working Wavelength | 850nm, 1310nm, 1550nm |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
| Durability | >1,000 times |
| Insulation Resistance | ≥1,000MΩ/500V(DC) |
| Voltage Resistance | ≥3,000V(DC), 1 min no puncture, no arc-over |
| Vertical Pressure | >980N |
| Atmospheric Pressure | 70~106KPa |
| Relative Humidity | ≤95% (+40°C) |
| Operating Temperature | -40°C~+60°C |
| Storage Temperature | -40°C~+60°C |
Ordering information: LW-OCC-XX-XX-XX-XX-XX:
| Model | LW-OCC |
| XX: Fiber Capacity | 288: 288 fibers |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC FC: FC/UPC FA: FC/APC LC: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail 9: 0.9mm D: 0.9mm distribution cable R: ribbon |
| XX: Splitter | W: with splitter None: without splitter |
| XX: Installation Method | None: floor standing W: wall mounting P: pole mounting |
