LW-FIM-P1 Fiber Optic Inspection Probe
WiFi Fiber Optic Connector Video Inspection Scope
LW-FIM-M3 WiFi Fiber Optic Connector Video Inspection Scope
2018-06-03
fibre wall box
LW-FOE-P1 Series Outdoor Pole Mount Fiber Enclosure
2018-06-05

Description:

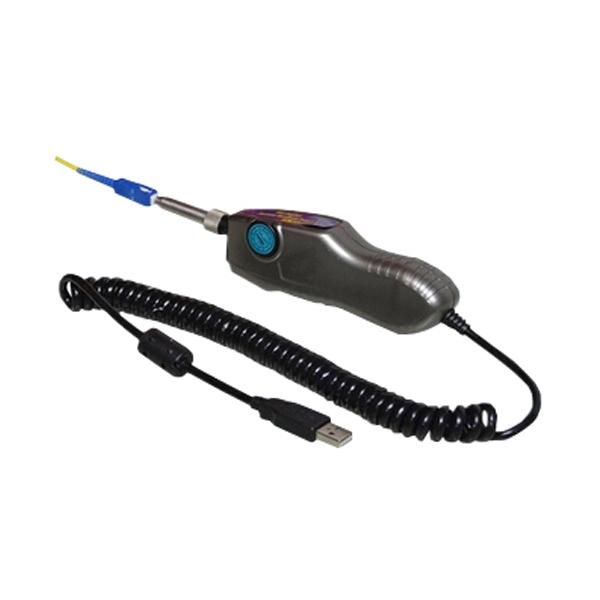

Fiber Optic Inspection Probe connects with the laptop/PC which is directly to inspect various fiber optic connectors of SC/LC/FC/MU/E2000/MPO’s end and face with 400X magnification. Fiber Optic Inspection Probe can verify whether the connector end face is contaminated, scratched, damaged, clean or not.

Fiber Optic Inspection Probe can be equipped with EFD3.3.0 Data Software to have end face verified based on different IEC/IPC internal criteria or customized criteria. All spots, scratches, defects, etc. around end face can be easily figured out, measured and counted with pdf or excel report file generated. It’s mostly applied in fiber operator and research institution.



Features:

  • Report printing
  • Lower failure rate
  • 400X magnification
  • High alignment accuracy
  • Suitable for various connectors inspection



Specification:

ItemsValue
Magnification400X
Resolution1.0μm
Field of View0.40*0.31mm
Working/Storage Temperature-18℃-35℃
Dimension235*95*30mm
Sensor1/3 decimetre, 2 million pixels
Weight0.15kg
USB Interface1.1/2.0
Standard Accessories:
NameQuantity
FIM-4 Fiber Microscope Probe1pc
Adapter SC-PC-F (for SC/PC adaptor)1pc
Adapter FC-PC-F (for FC/PC adaptor)1pc
Adapter LC-PC-F (for LC/PC adaptor)1pc
Adapter 2.5mm-Male (for 2.5mm connector, SC/PC, FC/PC, ST/PC)1pc
Optional Accessories:
NameQuantity
ST-PC-F (For ST/PC adaptor)1pc
MU-PC-F (For MU/PC adaptor)1pc
E2000-F-PC (For E2000/PC adaptor)1pc
MTRJ-PC-F (For MTRJ/PC adaptor)1pc
1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC)1pc
SMA-M (For SMA/PC connector)1pc
FC-F-APC (For FC/APC adaptor)1pc
SC-F-APC (For SC/APC adaptor)1pc
LC-APC-F ((For LC/APC adaptor)1pc
E2000-APC-F ((For E2000/APC adaptor)1pc
2.5M-APC (For 2.5mm connectors, SC/APC, FC/APC, ST/APC)1pc
MPO-PC-F (For MPO/PC adaptor);

MPO-APC-F (For MPO/APC adaptor)

1set
Tip60 (60 degree base for special tips)1pc
FC-PC-60F (For FC/PC adaptor at 60 degree testing)1pc
SC-PC-60F (For SC/PC adaptor at 60 degree testing)1pc
LC-PC-60F (For LC/PC adaptor at 60 degree testing)1pc
LC-APC-60F (For LC/APC adaptor at 60 degree testing)1pc
SC-APC-60F (For SC/APC adaptor at 60 degree testing)1pc
1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC at 60 degree testing)1pc
