Description:

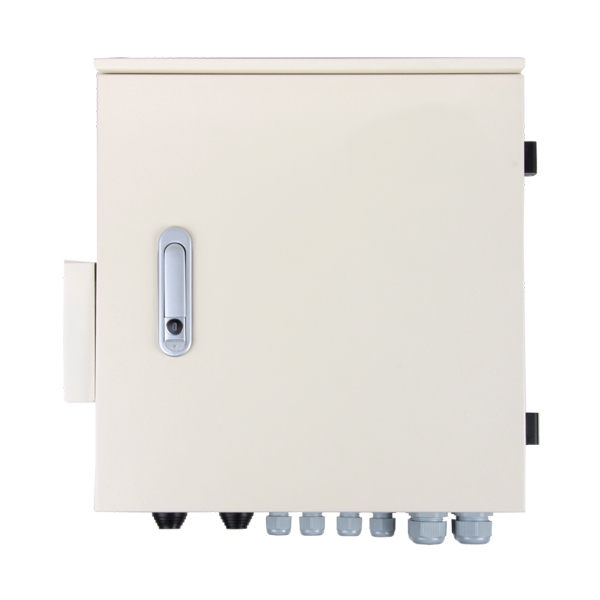

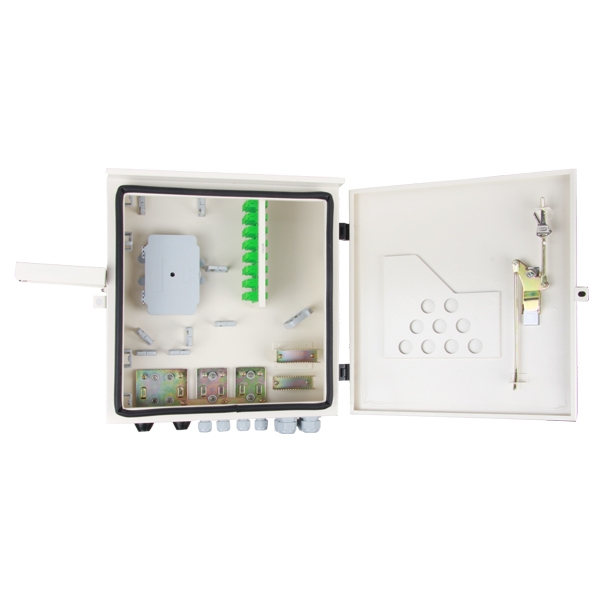

Outdoor Fiber Optic Pole Mount Enclosure provides a high density pole mounted solution for outdoor application in fiber optic networks. Fiber Optic Pole Mount Enclosure manages fiber optic cable termination and protects fiber splices, passive adapters and connectors in a limited space in Fiber to the Building network. Fiber Optic Pole Mount Enclosure is for optical fiber fixation, fusion and patching on pole.
Features:
- Cable clamping and strength member fixation system
- Clear fiber number which is marked on adapter panel and for pigtails
- Suitable for outdoor cable and FTTH Drop Cable
- Excellent waterproof and dust-proof sealing
- Magnetic locking system
General Specifications: (take LW-FOE-P1-32 for example)
| Applicable Adapter | SC, FC, ST or duplex LC |
| Capacity | 32 fibers |
| Material | cold rolled steel |
| Color | grey |
| Installation Method | pole mounting |

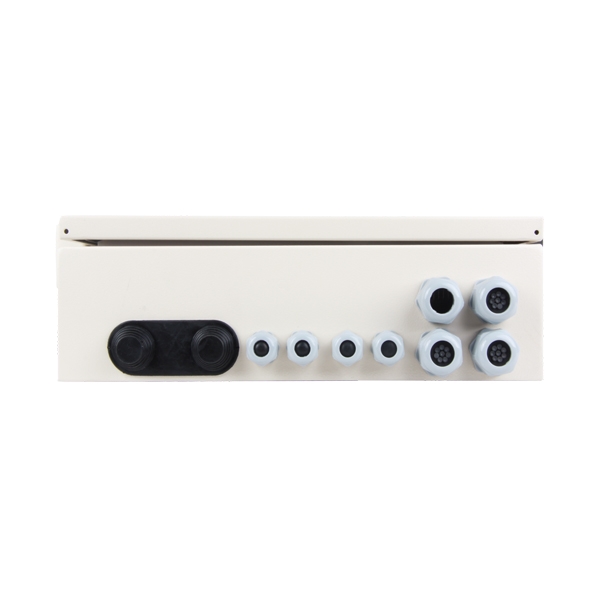

| Cable Ports | 6 ports (2 rubber ports & 4 cable glands) |
| Drop Cable Port | 4 cable glands (8 drop cable ports in each cable gland) |
| Dimension | 420(H)*380(W)*124(D)mm |
Ordering Information: LW-FOE-P1-XX-XX-XX:
| Model | LW-FOE-P1 |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC FC: FC/UPC FA: FC/APC LC: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without adapter SC: SC/UPC SA: SC/APC FC: FC/UPC FA: FC/APC LC: LC/UPC LA: LC/APC |
| XX: Fiber Capacity | 12: 12 fibers 16: 16 fibers 24: 24 fibers 32: 32 fibers 36: 36 fibers 48: 48 fibers 72: 72 fibers 96: 96 fibers |
