Description:
Drawer Type Fiber Optic Patch Panel is a 19” and 21” rack mount splice & patch enclosure with sliding trays for managing fiber optic cabling in central office in FTTx application.

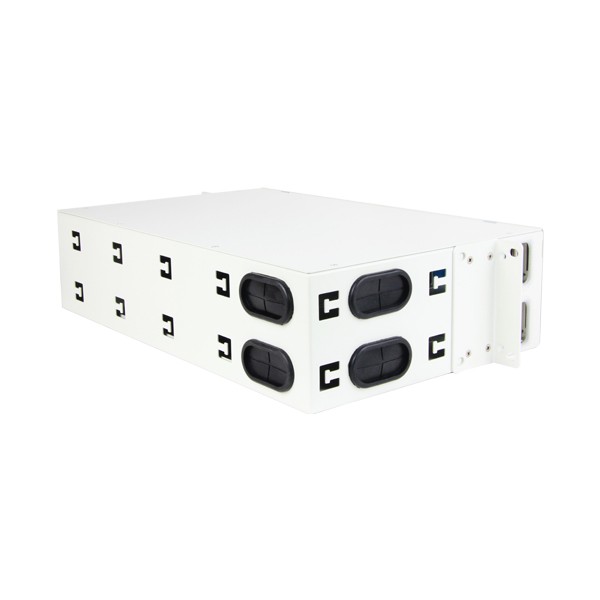

Drawer Type Fiber Optic Patch Panel is used as termination panel for optical fiber wiring, fixation, splicing and patching.

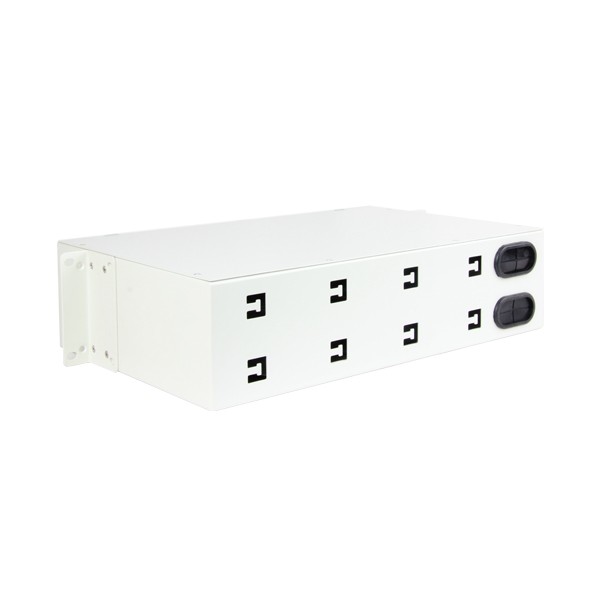

Based on different height, there are 1U patch panel, 2U patch panel, 3U patch panel, etc.
Based on different capacity, there are 24 port LC fiber patch panel, 48 port LC fiber patch panel, 72 port LC fiber patch panel, 96 port LC fiber patch panel and 144 port LC fiber patch panel.
Features:
- Adapters are installed in angle to avoid direct laser beam.
- Cable comes in the ODF from left side and back of ODF
- Sliding type ODF
Specifications:
| Applicable Adapter | SC, FC, LC |
| Capacity | 12~72 fibers |
| Material | cold rolled steel |
| Color | grey |

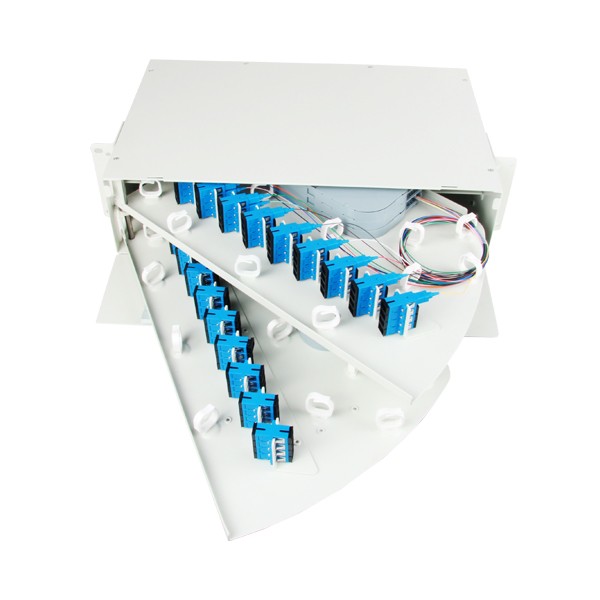

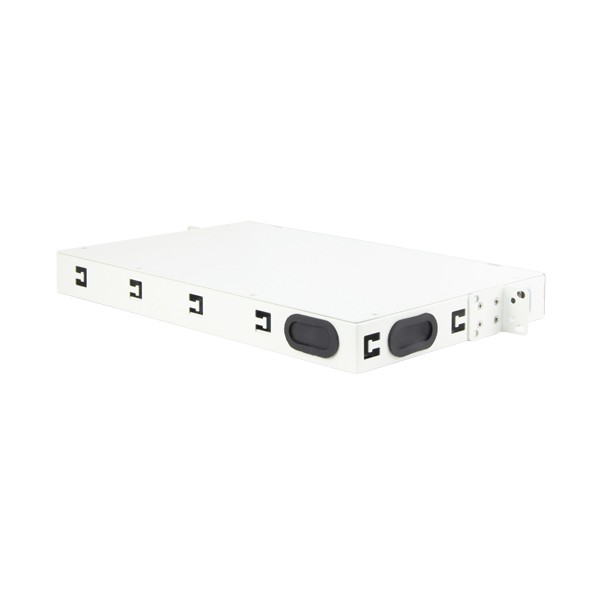

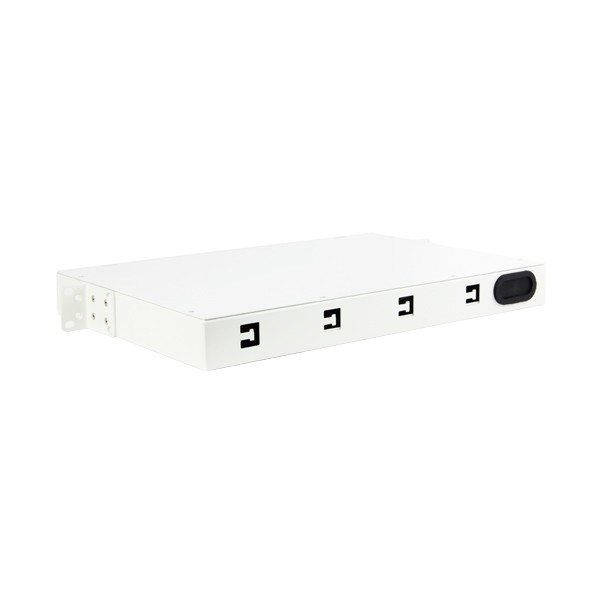

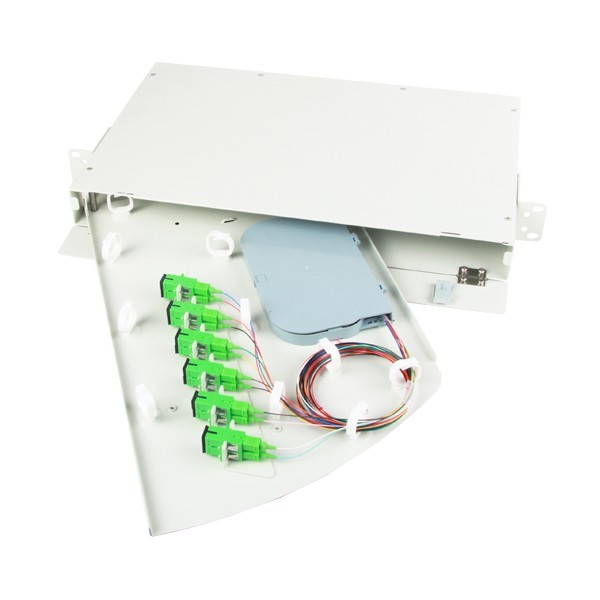

| Size | 12 fibers: 482.6(W)*270(D)*44(H)mm (19” 1U) 72 fibers: 482.6(W)*270(D)*108(H)mm (19”) |
| Net Weight | 12 fibers: 4.3kgs 72 fibers: 7.4kgs |

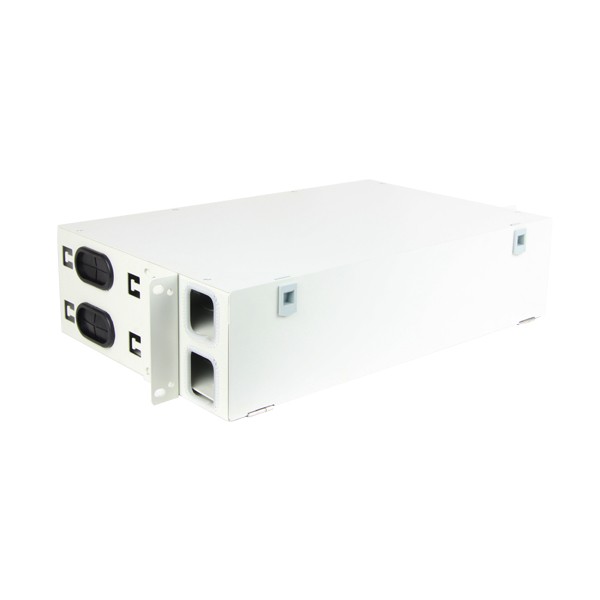

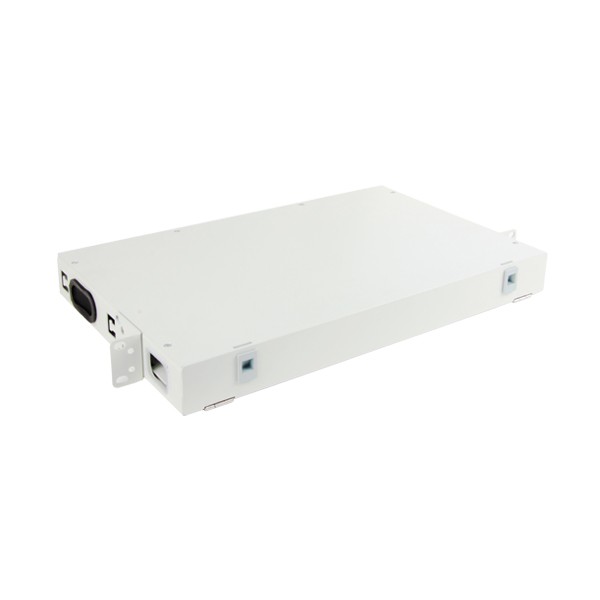

| Installation Method | 19”and 21” rack mount |
| Splice Tray Capacity | 16 fibers/tray |
Ordering Information: LW-FPP-F7-XX-XX-XX:
| Model | LW-FPP-F7 |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC FC: FC/UPC FA: FC/APC LC: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail 9: 0.9mm 2: 2.0mm 3: 3.0mm D: 0.9mm distribution cable R: ribbon |
| XX: Fiber Capacity | 12: 12 fibers 36: 36 fibers 72: 72 fibers |
Customization:
Printing logo, frame material, fiber capacity, adapter type, pigtail type, frame color, etc.
