LW-FPP-F6 Series Sliding Patch Panel - Fiber Optic Cabling Management

LW-FPP-F6 Series Sliding Patch Panel

19 inch rack mount Fiber Optic Patch Panel
LW-FPP-F5 Series High Density Fiber Optic Patch Panel
2018-05-25
72 ports swing optical frames
LW-FPP-F7 Series Drawer Type Fiber Optic Patch Panel
2018-05-25

Description:

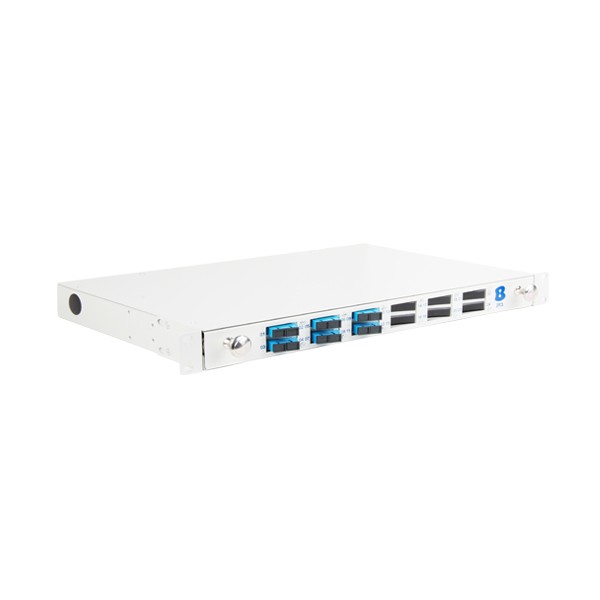

Fiber Optic Patch Panel is a 19 inch rack mount fiber optic enclosure for managing fiber optic cables in machine room in Fiber to the home application.

Fiber Optic Patch Panel is used as a fiber termination panel for optical fiber wiring, fixation, splicing, and patching.

Based on different adapter type, there are LC fiber patch panel, SC fiber patch panel, FC fiber patch panel, ST fiber patch panel, etc.



Features:

  • Adapters have installed an angle to avoid the direct laser beam
  • Cable gland and strength member fixation inside the ODF

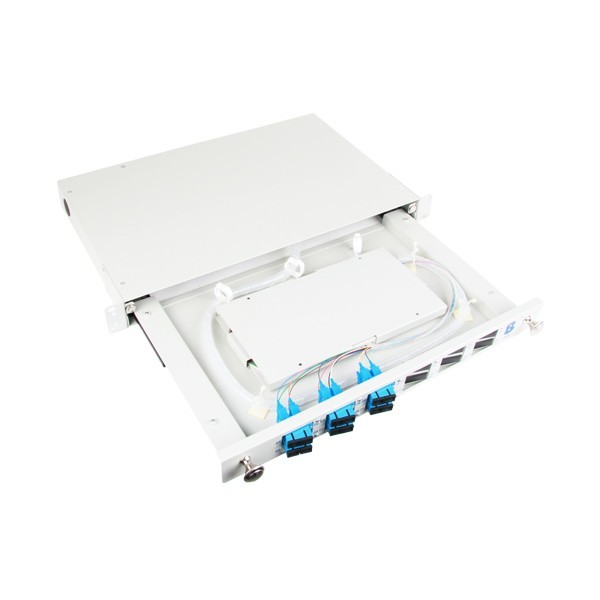

  • Drawer type ODF
  • Suitable for 19” and 23” installation
  • Replaceable adapter panel for duplex SC, simplex SC, FC, LC, etc.
  • Adjustable mounting depth



Specifications:

Applicable AdapterSC, FC, LC
Capacity24 fibers
Materialcold rolled steel
Colorgrey
Size482.6(W)*300(D)*44(H)mm (19”1U)
Net Weight2.5kgs
Installation Method19” and 23” rack mount
Splice Tray Capacity24 fibers/tray



Ordering Information: LW-FPP-F6-XX-XX-XX:

ModelLW-FPP-F6
XX: AdapterNone: without adapter

SC: SC/UPC

SA: SC/APC

FC: FC/UPC

FA: FC/APC

LC: LC/UPC

LA: LC/APC

XX: PigtailNone: without pigtail

9: 0.9mm

2: 2.0mm

3: 3.0mm

D: 0.9mm distribution cable

R: ribbon

XX: Fiber Capacity24: 24 fibers



Customization:

Printing logo, frame material, fiber capacity, adapter type, pigtail type, frame color, etc.
