Description:

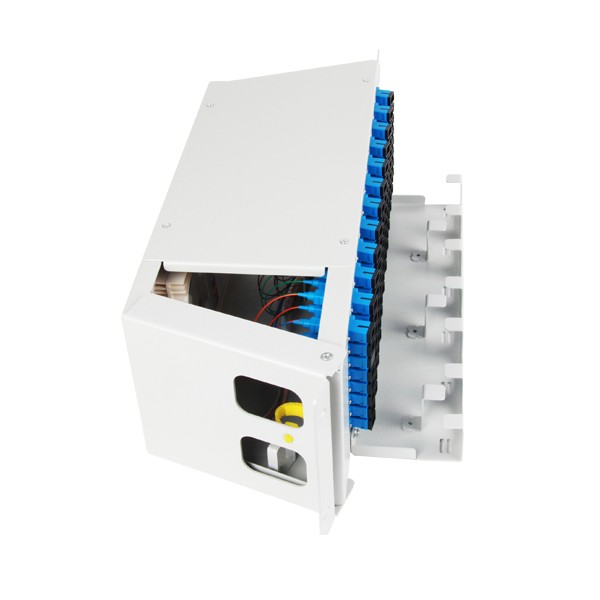

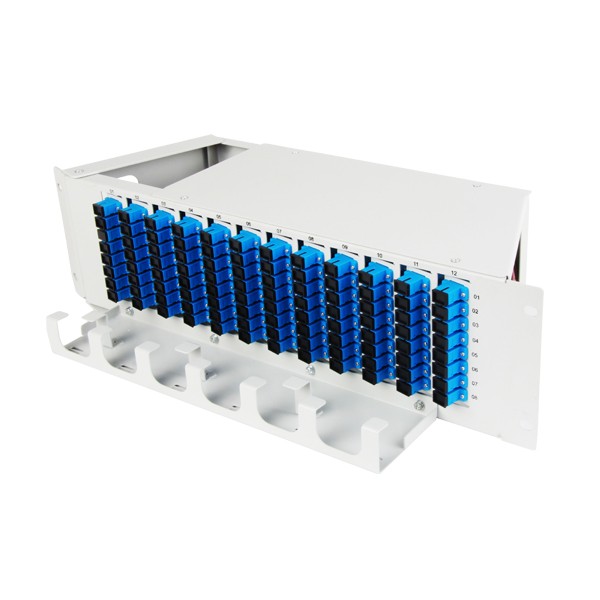

High Density Fiber Optic Patch Panel is a 19 inch rack mount fiber optic enclosure for managing fiber optic cables in machine room in Fiber to the home application.
Fiber Optic Patch Panel is used as a fiber termination panel for optical fiber wiring, fixation, splicing, and patching.
Based on different adapter type, there are LC fiber patch panel, SC fiber patch panel, FC fiber patch panel, ST fiber patch panel, etc.
Features:
- High density
- Adapters are installed in angle to avoid direct laser beam.
- Removable cover
- Clear fiber marking on the tray cover and adapter panel
- Sliding splice trays
Specifications:
| Applicable Adapter | SC, FC, LC |
| Capacity | 96 fibers |
| Material | cold rolled steel |
| Color | grey |
| Size | 482.6(W)*230(D)*127.2(H)mm (19”) |
| Net Weight | 3.5kgs |
| Installation Method | 19” rack mount |
| Splice Tray Capacity | 24 fibers/tray |
Ordering Information: LW-FPP-F5-XX-XX-XX:
| Model | LW-FPP-F5 |
| XX: Adapter | None: without adapter SC: SC/UPC SA: SC/APC FC: FC/UPC FA: FC/APC LC: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail 9: 0.9mm 2: 2.0mm 3: 3.0mm D: 0.9mm distribution cable R: ribbon |
| XX: Fiber Capacity | 96: 96 fibers |
Customization:
Printing logo, frame material, fiber capacity, adapter type, pigtail type, frame color, etc.
