Description:

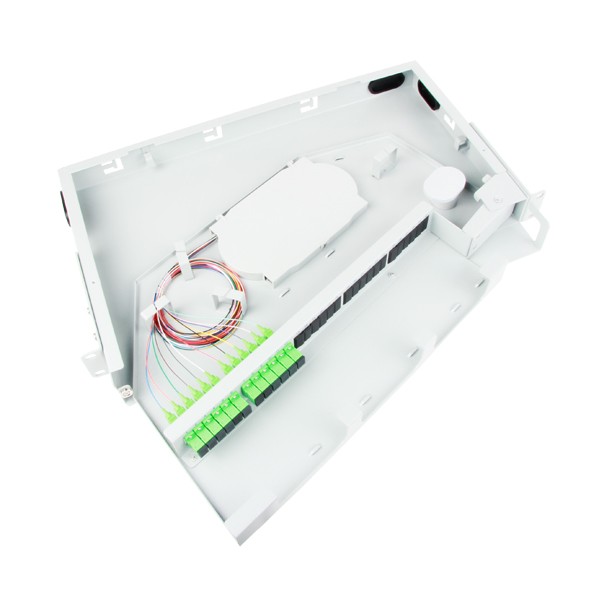

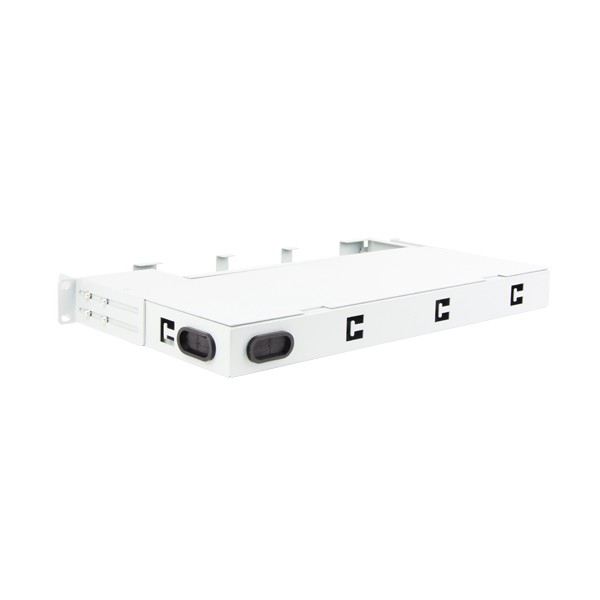

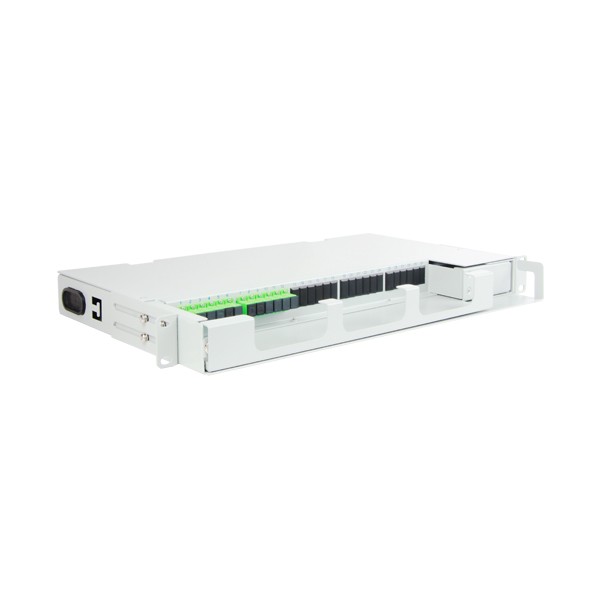

SC and LC Fiber Optic Patch Panel is a 19 inch rack mount fiber optic enclosure for managing fiber optic cables in machine room in Fiber to the home application.

SC and LC Fiber Optic Patch Panel is used as a fiber termination panel for optical fiber wiring, fixation, splicing, and patching.

Based on different adapter type, there are LC fiber patch panel, SC fiber patch panel, FC fiber patch panel, ST fiber patch panel, etc.

Features:

  • Changeable adapter panel for SC, FC, LC, etc.
  • Cable fixation by cable ties on the left and right sides and right back of ODF.
  • Excellent fiber bending radius mechanism to ensure the minimum bending radius
  • Removable cover

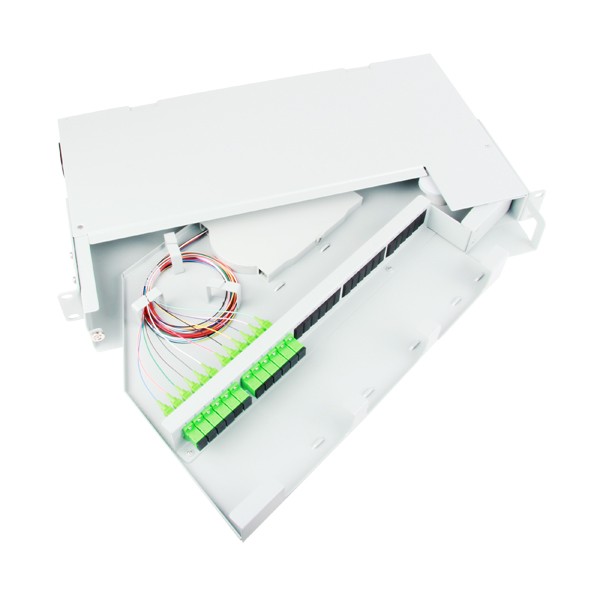

  • Sliding ODF and sliding tray fixed by the magnet
  • Adjustable mounting depth



Specifications:

Applicable AdapterSC, FC, LC
Capacity30 fibers
Materialcold rolled steel
Colorgrey
Size482.6(W)*280(D)*43.5(H)mm (19” 1U)
Net Weight4.2kgs
Installation Method19” rack mount
Splice Tray Capacity24 fibers/tray



Ordering Information: LW-FPP-F4-XX-XX-XX:

ModelLW-FPP-F4
XX: AdapterNone: without adapter

SC: SC/UPC

SA: SC/APC

FC: FC/UPC

FA: FC/APC

LC: LC/UPC

LA: LC/APC

XX: PigtailNone: without pigtail

9: 0.9mm

2: 2.0mm

3: 3.0mm

D: 0.9mm distribution cable

R: ribbon

XX: Fiber Capacity30: 30 fibers



Customization:

Printing logo, frame material, fiber capacity, adapter type, pigtail type, frame color, etc.
