Fiber optic adapter is an essential passive component in fiber optic communication network. It is used for the connection between connectors, jumpers, pigtails, splitters, etc. Fiber Optic Adapter’s internal precision sleeve is used to align ferrules of fiber optic connectors.

There are many types of fiber optic adapters for various connectors. We provide a wide range of fiber optic adapters, including SC adapter, FC adapter, LC adapter, ST adapter, E2000 adapter, MU adapter, MPO adapter, MTRJ adapter and  hybrid adapters, including SC to ST adapter, SC to FC adapter, SC to LC adapter, FC to LC adapter, LC to ST adapter, etc.

SC Adapters, also called SC Coupler or SC Bulkhead Connector, could couple SC connectors to SC connectors. The combination of a ceramic sleeve and precision molded polymer housing provides consistent long-term mechanical and optical performance.



Features:

  • High precision alignment
  • High reliability and stability
  • Low insertion loss and high return loss



Applications:

  • Cable TV
  • Telecommunication networks
  • Fiber to the Home



Specifications:

Insertion Loss≤0.2dB
Return Loss≥45dB (PC), ≥50dB (UPC), ≥65dB (APC)
Plug and Unplug Force200~600g/f
Durability1,000 times
Exchangeability≤0.2dB typical change after 1,000 matings
Relative Humidity95%
Operating Temperature-40°C~+85°C
Storage Temperature-55°C~+85°C



Ordering Information:

BrandLW
NameAD: Adapter
TypeSC: SC
Mode & Housing ColorSM: SM PC Blue Color

APC: SM APC Green Color

MM: MM Beige Color

OM3=MM OM3 10G Aqua Color

OM4: MM OM4 10G Purple Color

None: Metal; etc

Housing MaterialM: Metal

None: Plastic

ChannelSI: Simplex

DU: Duplex

FlangeNone: with flange

WO: without flange

Auto ShutterW: with auto shutter

None: without auto shutter



For Example:

PictureModelDescription
simplex SM SC adapterLW-AD-SC-SM-SISC/PC Adapter, blue plastic housing, single mode, simplex, zirconia ceramic sleeve, with flange

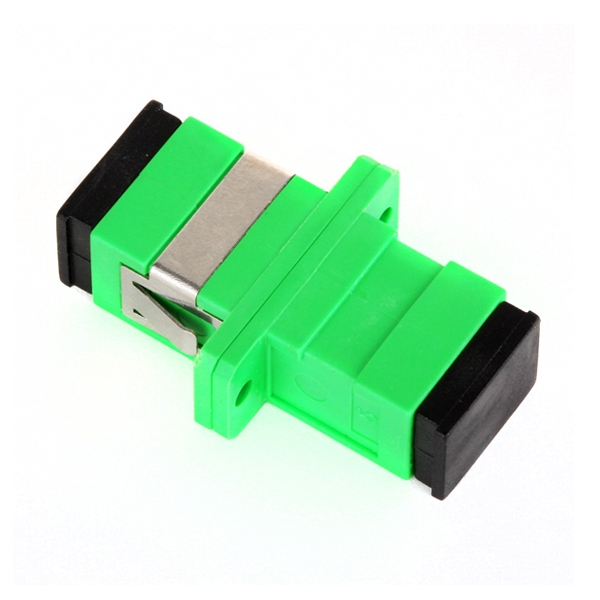

simplex SM SC-APC adapterLW-AD-SC-APC-SISC/APC Adapter, green plastic housing, single mode, simplex, zirconia ceramic sleeve, with flange
simplex MM SC adapterLW-AD-SC-MM-SISC/PC Adapter, beige plastic housing, multi-mode, simplex, zirconia ceramic sleeve, with flange
simplex OM3 10G SC adapterLW-AD-SC-OM3-SISC/PC Adapter, aqua plastic housing, multi-mode OM3 10G, simplex, zirconia ceramic sleeve, with flange
simplex metal SC adapterLW-AD-SC-M-SISC Adapter, simplex, metal housing, zirconia ceramic sleeve, with flange
duplex SM SC adapterLW-AD-SC-SM-DUSC/PC Adapter, blue plastic housing, single mode, duplex, zirconia ceramic sleeve, with flange
duplex SM SC-APC adapterLW-AD-SC-APC-DUSC/APC Adapter, green plastic housing, single mode, duplex, zirconia ceramic sleeve, with flange
duplex MM SC adapterLW-AD-SC-MM-DUSC/PC Adapter, beige plastic housing, multi-mode, duplex, zirconia ceramic sleeve, with flange
duplex OM3 10G SC adapterLW-AD-SC-OM3-DUSC/PC Adapter, aqua plastic housing, multi-mode OM3 10G, duplex, zirconia ceramic sleeve, with flange
duplex metal SC adapterLW-AD-SC-M-DUSC Adapter, duplex, metal housing, zirconia ceramic sleeve, with flange
simplex SM SC adapter without flangeLW-AD-SC-SM-SI-WOSC/PC Adapter, blue plastic housing, single mode, simplex, zirconia ceramic sleeve, without flange
simplex SM SC-APC adapter without flangeLW-AD-SC-APC-SI-WOSC/APC Adapter, green plastic housing, single mode, simplex, zirconia ceramic sleeve, without flange
simplex SM SC adapter with flange with auto shutterLW-AD-SC-SM-SI-W1SC/PC Adapter, blue plastic housing, single mode, simplex, zirconia ceramic sleeve, with flange, with auto shutter
simplex SM SC-APC adapter with flange with auto shutterLW-AD-SC-APC-SI-W1SC/APC Adapter, green plastic housing, single mode, simplex, zirconia ceramic sleeve, with flange, with auto shutter
simplex SM SC adapter without flange with auto shutterLW-AD-SC-SM-SI-WO-W2SC/PC Adapter, blue plastic housing, single mode, simplex, zirconia ceramic sleeve, without flange, with auto shutter
simplex SM SC-APC adapter without flange with auto shutterLW-AD-SC-APC-SI-WO-W2SC/APC Adapter, green plastic housing, single mode, simplex, zirconia ceramic sleeve, without flange, with auto shutter
simplex SM SC APC adapter with flange with auto shutterLW-AD-SC-APC-SI-W3SC/APC Adapter, green plastic housing, single mode, simplex, zirconia ceramic sleeve, with flange, with auto shutter
