MPO Adapter: Enhancing Connectivity and Efficiency

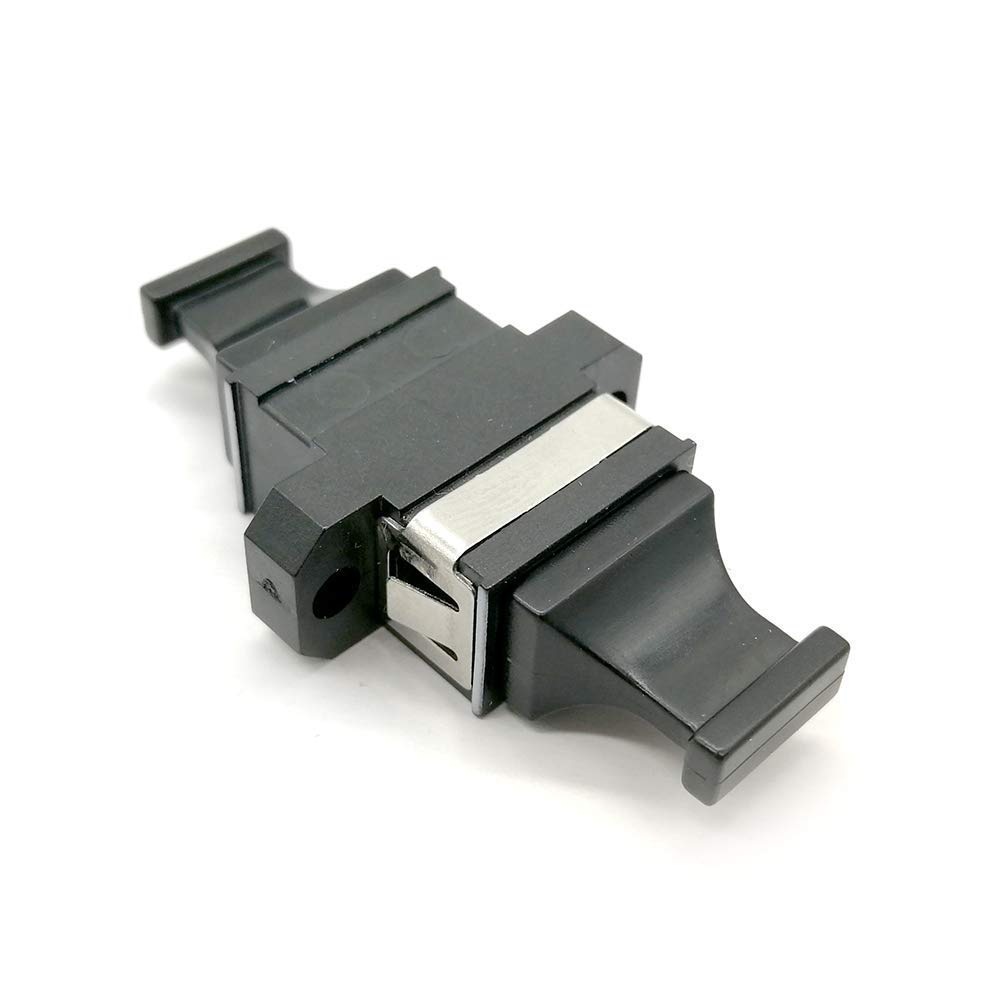

The MPO adapter is the device that connects multiple optical fibers in a single interface. The MPO means multi-fiber push-on, and it is a kind of connector that can hold up to 72 fibers in a small and regular shape. MPO adapters let you connect MPO connectors, which you can often see in places where you need a lot of data and fast speed, like data centers and LAN networks.
Types of MPO Adapter
MPO adapters come in different types and configurations. It depends on the number of fibers, the alignment of the key, and the presence of a shutter mechanism. Some of the common types of MPO adapters are:
- Key-up to key-down: Connects two MPO connectors with opposite key orientations. One connector has the key on the top and the other has the key on the bottom. This is the most common kind of adapter because it ensures proper polarity and alignment of the fibers.
- Key-up to key-up: Connects two MPO connectors with the same key orientation, meaning that both connectors have the key facing up or down. This type of adapter is used for specialty applications that require a specific fiber arrangement or routing.
- Reduced flange: Has a smaller flange (the part that attaches to the panel or enclosure) than the standard adapter, allowing for more adapters to be installed in a given space. It is ideal for high-density applications that require more ports and less cabling.
- Shuttered: Has a built-in shutter mechanism that covers the end face of the connector when it is not in use. This prevents dust and debris from entering and damaging the connector. You should use this kind of adapter in high-reliability and performance applications.
Conclusion
MPO adapters play a crucial role in the MPO system, which includes MPO connectors, MPO cables, and MPO cassettes or patch panels. The MPO system provides a convenient and efficient plug-and-play solution for high-speed data transmission. MPO adapters make sure the MPO connectors fit well and the MPO system works well.
