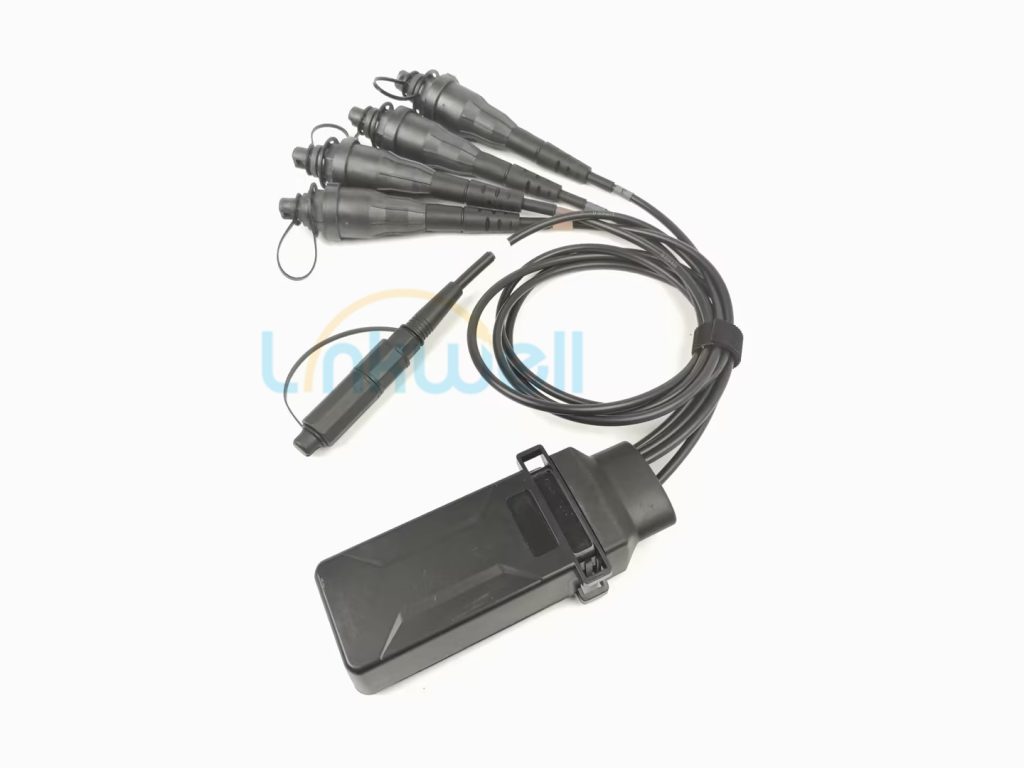

FST Flexible Service Terminal Splitter With OptiTap Connectors

Description:

The flexible service terminal (FST) series is designed especially for fast, easy network connections in space-constrained environments. A small terminal unit attached to staggered-length connector cables gives installers maximum flexibility in the tightest, most challenging install situations. Hardened fiber stubs make for fast, reliable, plug-and-play distribution to customer premises. The FST’s unique design also simplifies maintenance, as the flexible hardened adapter stubs are easy to clean and re-connect without removing the terminal from its installed position.

OptiTap Male Connector

OptiTap Female Connector

5mm Round Cable

Features:

Flexible Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
Flexible structure plus very small branching unit, allowing installation in constrained spaces
Output cables are staggered, optimizing distributed space consumption and minimizing cable kinking

FST Splitter Specification:

Type	1:2, 1:4, 1:6, 1:8, 1:12
Product Type	Flexible Service Terminal Splitter
Operating Temperature	-40 ºC to +65 ºC (-40 ºF to +149 ºF)
Fiber Type	G.657A2
Environmental Space	Above ground \| Below ground \| Buried
Relative Humidity	5%–100%, condensing
Qualification Standards	IP67 as standard(IP68 as optional)

Cable Specifications:

Cable Type	Round outdoor cable – Loose Tube
Cable Size	5.0mm
Cable Length	Customized
Attenuation, maximum	0.30 dB/km @ 1550 nm \| 0.40 dB/km @ 1310 nm
Operating Wavelength Range	1260–1650 nm
Directivity, minimum	60 dB
