Understanding Fiber Optic Mechanical Splice

A Fiber Optic Mechanical Splice is an important device in fiber optics. It provides a fast, easy, and affordable way to connect or repair fiber optic cables. These devices can connect two fiber ends together without requiring expensive fusion splicing equipment.

What is the Fiber Optic Mechanical Splice?

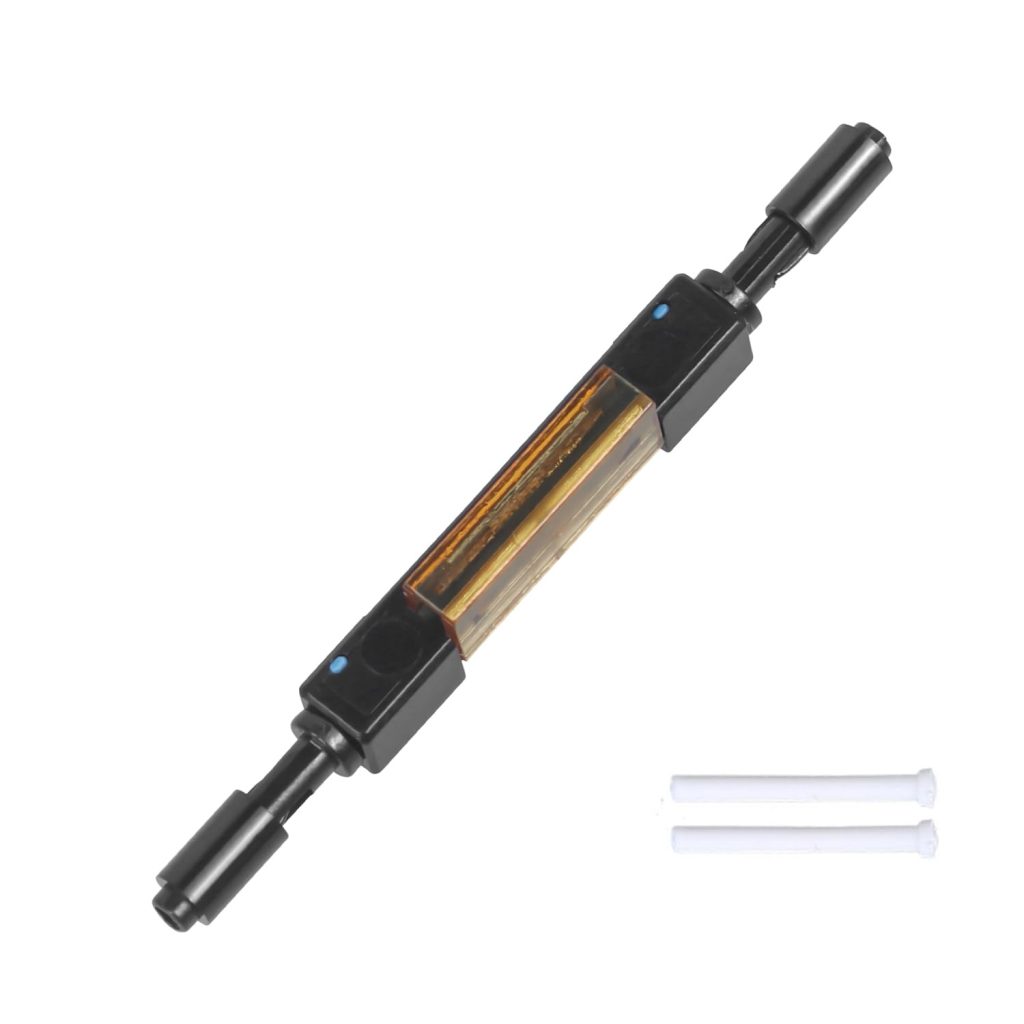

A fiber optic mechanical splice is like a fusion splice, but instead of welding, it uses mechanical means to hold the fibers together. It looks similar to the protective sleeves used in fusion splicing.

In a mechanical splice, two cleaved fiber tips are aligned using a special housing. An index-matching gel is often used between the fiber tips to improve coupling and reduce back reflection.

Working Principle of the Mechanical Splice

A mechanical splicer is a device that quickly, easily, and cost-effectively connects or repairs fiber optic cables. It aligns and secures two fiber ends so that light can pass from one fiber to the other.

To use a mechanical splicer, we remove the protective coatings on the fiber ends, clean and cut the ends. Then, we insert the cut ends into the splicer, which precisely aligns them using an internal mechanism.

To reduce light loss and reflection at the joint, we apply an index-matching gel inside the splicer. This gel has a refractive index similar to the glass fiber, allowing the light to pass through the joint with minimal loss.

Alignment Mechanisms in Mechanical Splice

In mechanical splicers, the accuracy of alignment is really important because it affects how much light can pass between the fibers. There are two main ways to align the fibers in mechanical splicers: V-groove and elastomeric.

1. V-Groove Alignment: This is the most common method. It uses a groove that is carefully made to hold the fibers and align them based on their natural contact points. The depth and width of the groove are important to make sure the fibers are aligned correctly.
2. Elastomeric Alignment: This method uses a flexible material to align the fibers. The material can change shape to fit around the fibers and make sure they are aligned accurately. This method is not as common but can work better in places where the temperature changes a lot.

Conclusion

Fiber Optic Mechanical Splice has proven to be an indispensable tool in fiber optics, providing a quick and reliable method of connecting or repairing fiber optic cables. Understanding their working principle and alignment mechanisms is crucial for those working in the field of fiber optics.

While they may not provide as low a loss or as high reliability as fusion splicing, mechanical splicers offer a cost-effective solution that is particularly useful in situations where fusion splicing may not be practical or possible.
